WSe2/BiFeO3/Q2DEG混合异质结的光电性能
邹俊1, 赵润1,2(), 戴称民1,2()
1.苏州科技大学物理科学与技术学院 江苏省高校智能光电子器件与芯片重点实验室 苏州 215009
2.苏州科技大学物理科学与技术学院 太湖光子中心先进技术研究所 苏州 215009
Photoelectric Properties of WSe2/BiFeO3/Q2DEG Hybrid Heterojunctions
ZOU Jun1, ZHAO Run1,2(), DAI Chenmin1,2()
1.Key Laboratory of Intelligent Optoelectronic Devices and Chips of Jiangsu Higher Education Institutions, School of Physical Science and Technology, Suzhou University of Science and Technology, Suzhou 215009, China
2.Advanced Technology Research Institute of Taihu Photon Center, School of Physical Science and Technology, Suzhou University of Science and Technology, Suzhou 215009, China
引用本文:

邹俊, 赵润, 戴称民. WSe2/BiFeO3/Q2DEG混合异质结的光电性能[J]. 材料研究学报, 2026, 40(3): 210-216.
Jun ZOU, Run ZHAO, Chenmin DAI. Photoelectric Properties of WSe2/BiFeO3/Q2DEG Hybrid Heterojunctions[J]. Chinese Journal of Materials Research, 2026, 40(3): 210-216.

全文: PDF(4410 KB)   HTML
摘要:

将脉冲激光沉积与Ar+离子轰击辅助相结合制备出WSe2/BiFeO3(BFO)/准二维电子气混合异质结,表征其结构和性能并研究其光电性能。结果表明,这种WSe2/BiFeO3(BFO)/准二维电子气混合异质结具有低温可充电光电导效应,将失效温度提高到60 K。用405 nm光照射30 s在暗态下施加偏压可释放存储的光生载流子峰值电流(达到250 μA)。同时,在20 K低温和+4 V固定偏压条件下,这种器件在不同激光照射下具有稳定且可重复的开关特性,改变光强和波长可协同调控光电流强度和开关比。这种CPC效应还具有宽光谱响应(405~808 nm)、低温增强性以及抗磁场干扰特性。结果深化了对多铁-二维界面光生载流子分离、存储以及输运物理过程的理解。

关键词 : 无机非金属材料,  准二维电子气,  可充电光电探测器,  范德华异质结,  二硒化钨,  光电响应
Abstract:

Current research on van der Waals heterostructure-based optoelectronic devices has predominantly focused on two-dimensional (2D) material systems, whereas investigations into the integration of multiferroic thin films with 2D materials within van der Waals heterostructures remain limited. In this study, a hybrid WSe2/BiFeO3(BFO)/quasi-two-dimensional electron gas (Q2DEG) heterostructure was successfully fabricated by combining pulsed laser deposition (PLD) with Ar+-ion bombardment-assisted (AIBA) techniques. A low-temperature chargeable photoconductivity (CPC) effect was achieved, with the operational retention temperature extended up to 60 K. The results demonstrate that after 30 s of illumination using a 405 nm laser, the peak current of stored photogenerated carriers released upon application of a bias voltage in the dark state reaches 250 μA. Moreover, under a fixed bias voltage of +4 V and at low temperature of 20 K, the device exhibits stable and repeatable switching behavior under varying laser irradiation conditions. Both the photocurrent magnitude and on/off ratio can be synergistically modulated through control of light intensity and wavelength. The CPC effect further demonstrates broad spectral responsivity (405-808 nm), enhanced performance at low temperatures, and robustness against external magnetic field interference. This work not only advances the fundamental understanding of photogenerated carrier separation, storage, and transport mechanisms at multiferroic-2D material interfaces but also establishes a critical materials and device platform for the development of high-performance non-volatile optical memory and neuromorphic computing technologies.

Key words: inorganic non-metallic materials    quasi-two-dimensional electron gas    rechargeable photodetector    van der Waals heterojunction    tungsten diselenide    photoelectric response
收稿日期: 2025-08-13
ZTFLH:  O469
基金资助:国家自然科学基金(12374090)
通讯作者: 赵润,副教授,zr@usts.edu.cn,研究方向为功能薄膜;
戴称民,daichenmin@usts.edu.cn,研究方向为半导体材料与器件设计
Corresponding author: ZHAO Run, Tel: 15862329061, E-mail: zr@usts.edu.cn;
DAI Chenmin, Tel: 15506192085, E-mail: daichenmin@usts.edu.cn
作者简介: 邹 俊,男,1999年生,硕士生

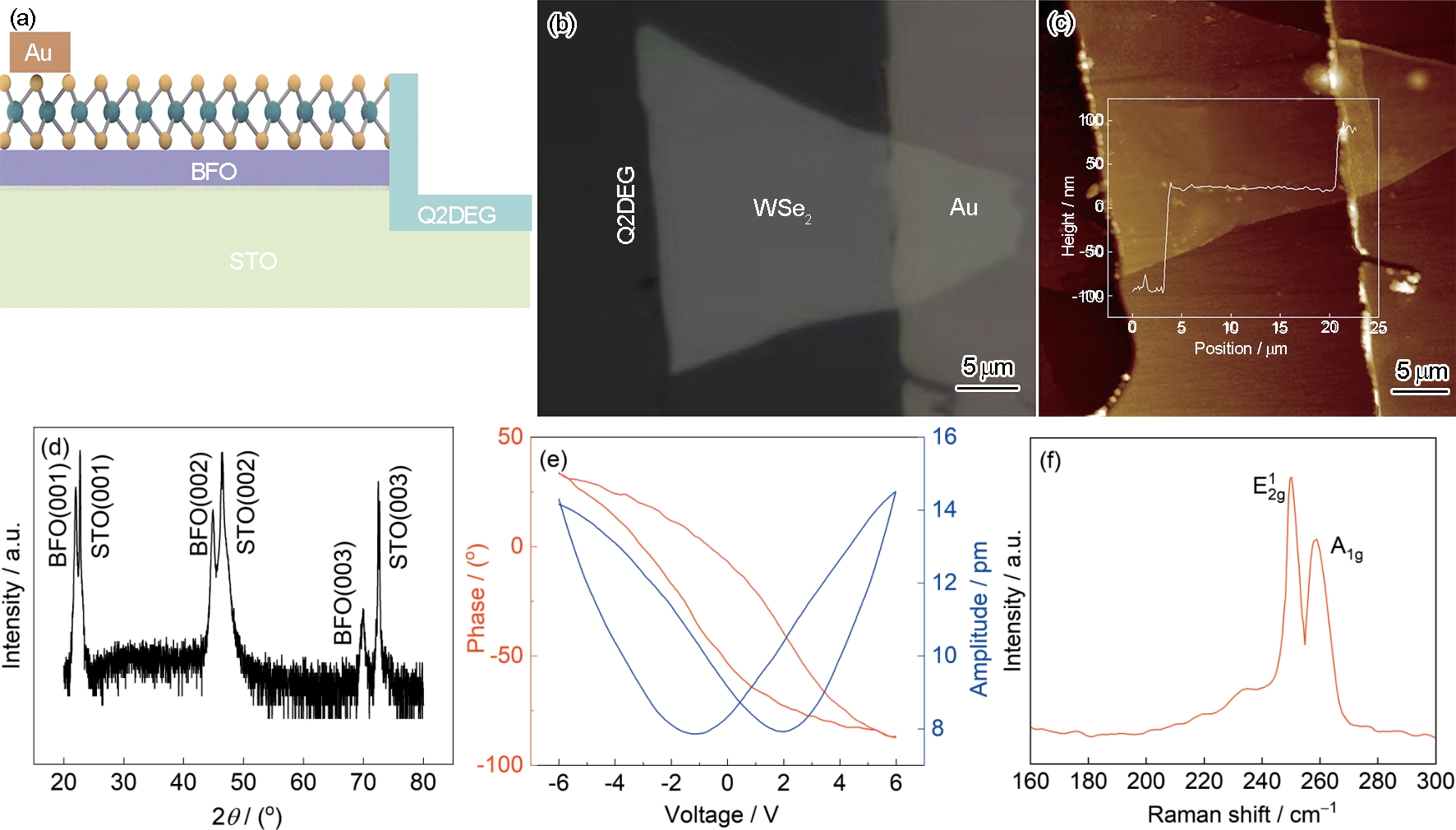

图1  器件的形貌和结构

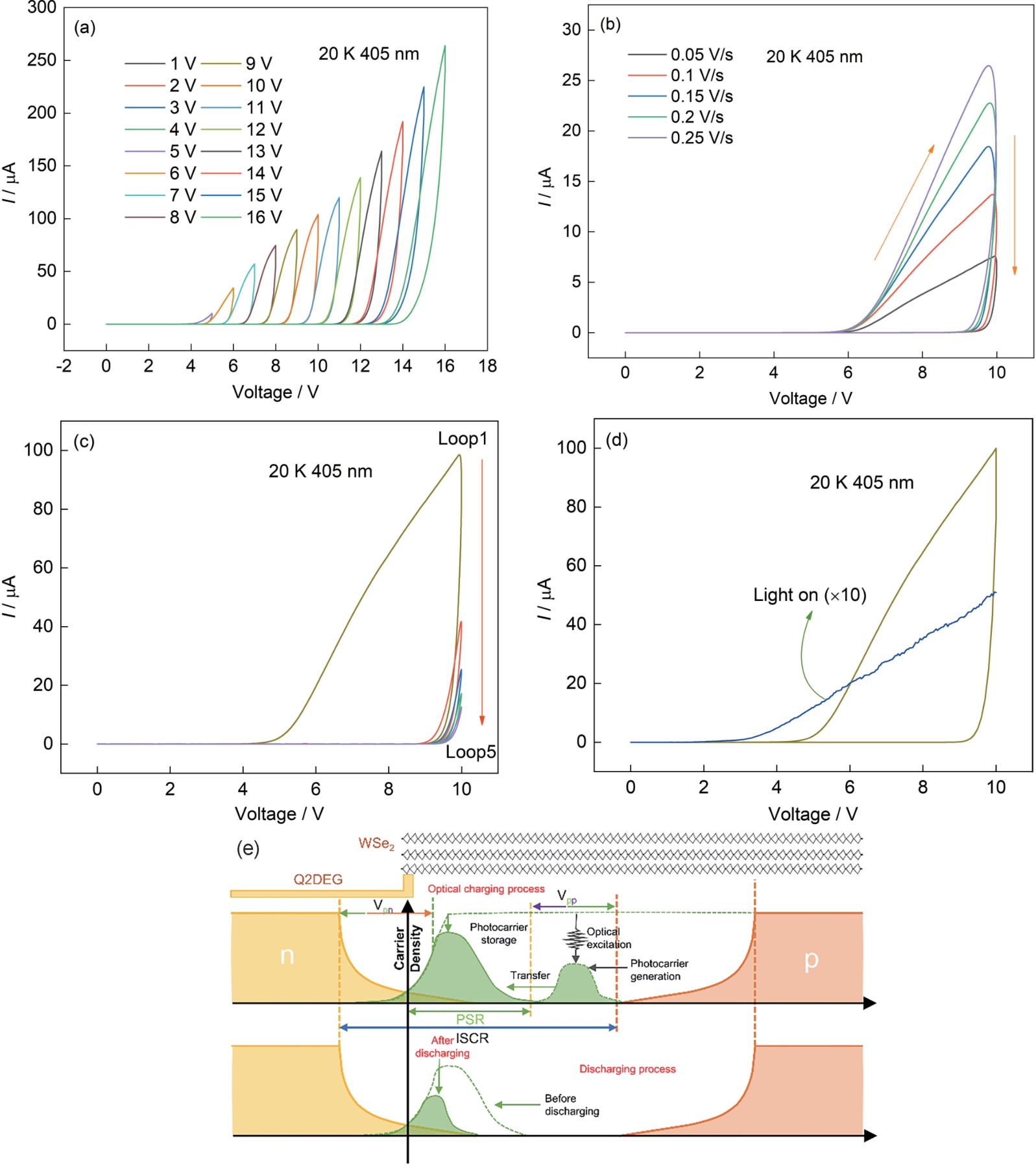

图2  器件的CPC效应测试

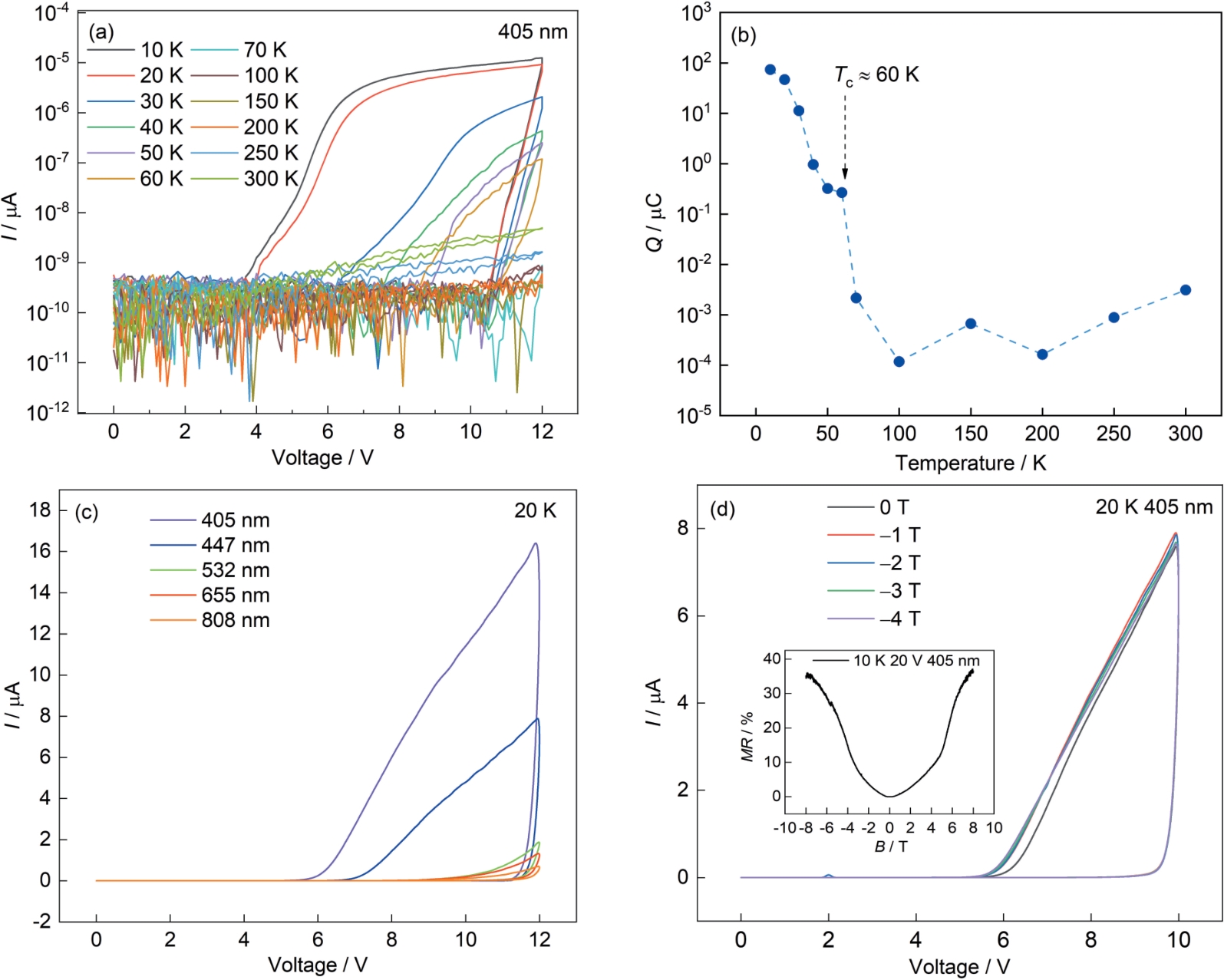

图3  器件CPC效应在多场中的物性测量
图4  器件在20 K的光电开关特性
