中空FeS2/NiS2/Ni3S2@NC立方体复合材料的制备及其电化学性能

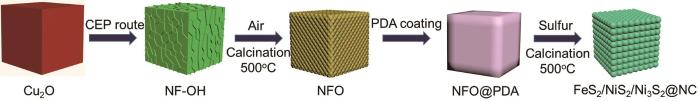

图1 制备中空FeS₂/NiS₂/Ni₃S₂@NC立方体的示意图

Fig.1 Schematic diagram of preparation of hollow FeS₂/NiS₂/Ni₃S₂@NC cube

为了比较金属硫化物材料与包覆NC层复合材料的性能，在相同条件下制备中空FeS₂/NiS₂/Ni₃S₂立方体。

1.4 性能表征

用SU8220型扫描电镜和Titan G2 F30型透射电镜表征材料的形貌、微观结构及元素分布。用Smartlab 9kW型X射线衍射仪测定样品的相结构，扫描速率为8 (°)/min，扫描范围为10°~80°。用Thermo Electron型拉曼光谱仪表征碳材料的石墨化程度。用MPA型在红外光谱仪测试材料的红外吸收光谱，波长范围为4000~500 cm^-1。用3Flex 5.02型分析仪表征N₂的吸附和解吸性能，测定样品的比表面积和孔径分布。用Thermo ESCALAB 250XI型X射线光电子能谱仪(XPS)分析样品的化学成分。

依次将活性物质(FeS₂/NiS₂/Ni₃S₂@NC和FeS₂/NiS₂/Ni₃S₂)、导电剂(乙炔黑)和粘结剂(PVDF/NMP，0.025 g·mL^-1)按照7∶2∶1的质量比，磁力搅拌10 h混合均匀。在适当大小的铜箔表面均匀涂覆搅拌好的浆料，放在真空烘箱中120℃干燥10 h。计算得到电极上活性物质的质量负荷约为1.0 mg。在充满氩气的手套箱中组装扣式电池(CR2032)，以用其测试这种材料的电化学性能。在室温静置适当时间后，使用CHI660E电化学工作站的LAND CT3001A电池测试系统用循环伏安法(CV)和电化学阻抗谱法(EIS)测试不同电流密度下电池的恒流充放电性能。

2 结果和讨论

2.1 中空FeS₂/NiS₂/Ni₃S₂@NC立方体复合材料的物相结构和组成

比对图2a中衍射峰的位置，表明制备过程的第一步得到的立方体成分为Cu₂O(JCPDS#05-0667)。图2b给出了NF-OH和NFO的XRD谱。比对结果表明，高温煅烧后物质的组分发生了变化。在NF-OH的XRD谱中19.26°、33.06°和38.54°处的衍射峰分别与Ni(OH)₂ (JCPDS#14-0117)的(001)、(100)和(101)晶面有关，在18.47°、43.04°和62.73°处的峰分别对应Fe(OH)₃(JCPDS#22-0346)的(111)、(400)和(440)晶面。这表明，经CEP路线得到的产物其组分为Ni(OH)₂和Fe(OH)₃。在NFO的XRD谱中出现了分别位于37.25°、43.27°和62.88°处的3个主衍射峰，对应NiO(JCPDS#47-1049)的(111)、(200)和(220)晶面。位于30.27°、35.68°和63.01°处的衍射峰，分别对应Fe₂O₃(JCPDS#25-1402)的(206)、(119)和(4012)晶面。这些结果表明，Ni和Fe的氧化物成分为NiO和Fe₂O₃。从XRD谱可见，两种材料衍射峰的峰位均较宽，说明这两种材料的结晶度较低，Ni(OH)₂/Fe(OH)₃可能与其在室温下合成有关，NiO/Fe₂O₃可能与其表面的颗粒粒径较小有关^[9]。

图2

图2 Cu₂O、NF-OH和NFO的XRD谱、FeS₂/NiS₂/Ni₃S₂@NC与FeS₂/NiS₂/Ni₃S₂的XRD谱的对比以及 FeS₂/NiS₂/Ni₃S₂@NC的拉曼谱

Fig.2 XRD patterns of Cu₂O (a), XRD patterns of NF-OH and NFO (b), XRD patterns of FeS₂/NiS₂/Ni₃S₂@NC and FeS₂/NiS₂/Ni₃S₂ (c) and Raman spectra of FeS₂/NiS₂/Ni₃S₂@NC (d)

图2c给出了FeS₂/NiS₂/Ni₃S₂@NC与FeS₂/NiS₂/Ni₃S₂的XRD谱的对比，先确定金属硫化物的成分。位于28.51°、33.08°、37.11°、40.78°、47.41°和56.28°处的衍射峰分别与FeS₂ (JCPDS#42-1340)的(111)、(200)、(210)、(211)、(220)和(311)晶面有关。位于27.69°、32.08°、35.99°、39.56°、46.01°和54.55°处的衍射峰分别与NiS₂(JCPDS#11-0099)的(200)、(210)、(211)、(220)、(311)和(230)晶面有关。位于29.60°、49.35°、58.64°和72.48°处的衍射峰与Ni₃S₂(JCPDS#27-0341)的(111)、(220)、(311)和(400)晶面有关。对比衍射峰的位置可以确认，金属元素Ni和Fe是以FeS₂、NiS₂和Ni₃S₂的形式存在。同时，FeS₂/NiS₂/Ni₃S₂@NC与FeS₂/NiS₂/Ni₃S₂的XRD谱的比对结果表明，FeS₂/NiS₂/Ni₃S₂@NC中C的峰并不明显，表明材料中的碳主要以无定形的形式存在。

在图2d的拉曼光谱中能清楚地观察到1372 cm^-1和1533 cm^-1附近的两个峰，分别对应D带和G带。D带是内部结构缺陷或随机引入拉曼散射引起的，G带与sp²杂化碳原子的拉伸振动有关。D带峰值的强度与G带峰值的强度之比，能反映碳材料的石墨化程度。本文实验中I_D/I_G的峰值强度比为0.98 (< 1)，表明复合材料中的碳材料存在丰富的拓扑缺陷和紊乱，有利于锂的储存^[10]。

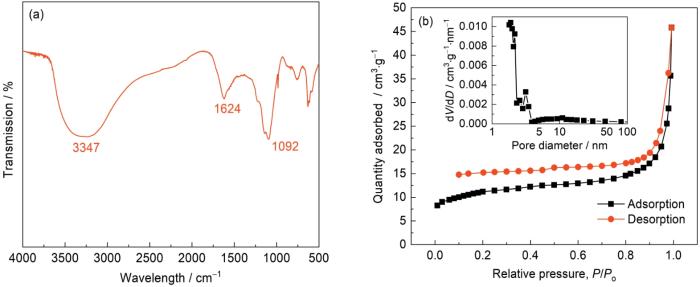

图3a给出了复合材料的红外光谱，图中3347 cm^-1处出现一个宽吸收峰，表明其含有-OH。在1624 cm^-1处的吸收峰可归因于C=C的伸缩振动，1290~1000 cm^-1处的吸收峰表明存在C-N、C-O和C-C^[11,12]。图3b给出了中空FeS₂/NiS₂/Ni₃S₂@NC立方体复合材料的N₂吸附/脱附等温线，可见其明显为IV型，比表面积为39.65 m²·g^-1，孔径分布曲线为典型的介孔，孔径范围主要在2~5 nm之间。这表明，这种复合材料的比表面积较大、孔隙较多，有利于Li⁺的储存和扩散。

图3

图3 FeS₂/NiS₂/Ni₃S₂@NC的红外光谱、N₂吸附/脱附等温线和孔径分布

Fig.3 IR spectra (a) and N₂ absorption/desorption isotherm and pore size distribution curve (b) of FeS₂/NiS₂/Ni₃S₂@NC

图4a给出了FeS₂/NiS₂/Ni₃S₂@NC的X射线光电子能谱(XPS)的全谱，表明样品由Ni、Fe、S、C、N五种元素组成。由图4b给出的Ni 2p XPS谱拟合出了两个自旋轨道双星和两个振动卫星(记为“Sat.”)。Ni²⁺的2p_3/2和2p_1/2处的峰位于854.2和871.8 eV，而位于857.5和875.2 eV的拟合峰属于Ni³⁺的2p_3/2和2p_1/2。另外，Ni 2p_3/2和Ni 2p_1/2的卫星峰分别位于862.6和880.4 eV^[13,14]。图4c给出了Fe 2p的XPS谱，位于707.3和719.6 eV的拟合峰对应Fe²⁺，711.4和724.2 eV处的峰，表明存在Fe^3+[15,16]。在图4d给出的S 2p谱中，163.7和164.9 eV处的拟合峰分别对应S 2p_3/2和S 2p_1/2，表明产物含有S-S键^[17]。同时，从图4e可以看出，C 1s的XPS谱中284.7、285.9和288.4 eV分别对应C-C/C=C、C-N和C=O^[18,19]。在图4f给出的拟合后的N 1s XPS谱中，三个主要峰分别为398.3、399.5和401 eV，对应吡啶氮、吡咯氮和石墨氮^[10,20]。XPS表征结果和IR结果，进一步证明已经成功地将N元素掺杂进碳材料中。

图4

图4 FeS₂/NiS₂/Ni₃S₂@NC的全谱以及Ni 2p、 Fe 2p、 S 2p、 C 1s和N 1s的XPS谱

Fig.4 Survey scan of FeS₂/NiS₂/Ni₃S₂@NC (a) and XPS high-resolution spectrum of Ni 2p (b), Fe 2p (c), S 2p (d), C 1s (e), N 1s (f)

2.2 微观形貌

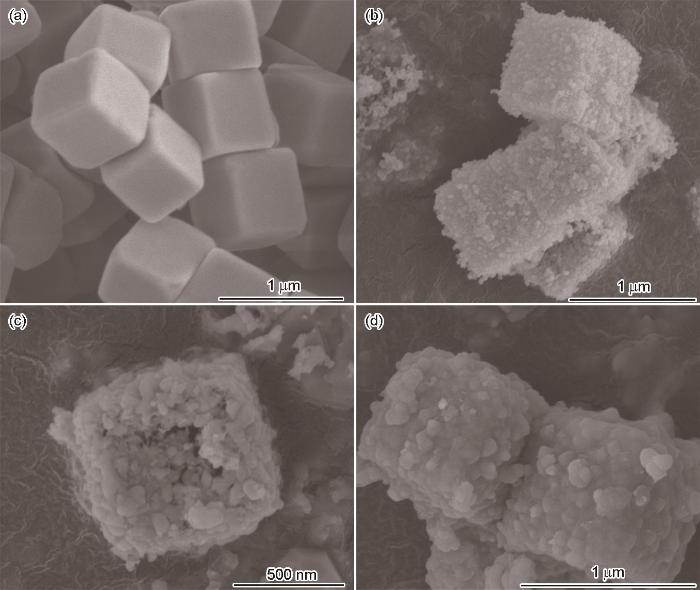

从图5a可见，合成的Cu₂O立方体形状完整，大小均匀，边长约为700 nm，没有团聚。从图5b可见，以Cu₂O为自牺牲模板制备的NF-OH立方体表面不光滑，具有片状和小颗粒结构。Cu₂O与S₂O $_{3}^{2 -}$ 发生络合反应

图5

图5 Cu₂O、NF-OH、FeS₂/NiS₂/Ni₃S₂以及FeS₂/NiS₂/Ni₃S₂@NC的SEM像

Fig.5 SEM images of Cu₂O (a), NF-OH (b), FeS₂/NiS₂/Ni₃S₂ (c), FeS₂/NiS₂/Ni₃S₂@NC (d)

C u_{2} O + S_{2} O_{3}^{2 -} + H_{2} O \to [C u_{2} (S_{2} O_{3}^{2 -})_{x}]^{2 - 2 x} + 2 O H^{-}

(1)

和

S_{2} O_{3}^{2 -} + H_{2} O \to H S_{2} O_{3}^{-} + O H^{-}

(2)

生成[Cu₂(S₂O $_{3}^{2 -}$ ) _x ]^{2 - 2}^x 和OH^-，而Cu₂O表面的Ni²⁺和Fe²⁺与OH^-发生反应生成了金属氢氧化物，

N i^{2 +} + 2 O H^{-} \to N i {(O H)}_{2}

(3)

F e^{2 +} + 2 O H^{-} \to F e {(O H)}_{2}

(4)

其中Fe(OH)₂氧化成Fe(OH)₃^[21,22]

4 F e {(O H)}_{2} + 2 H_{2} O + O_{2} \to 4 F e {(O H)}_{3}

(5)

图5d给出了NF-OH立方体高温煅烧、包覆PDA和硫化碳化处理后的形貌。可以看出，高温煅烧后FeS₂/NiS₂/Ni₃S₂@NC立方体的表面出现较大的颗粒结构，因为一部分金属硫化物嵌入进碳层。形貌比对结果表明，FeS₂/NiS₂/Ni₃S₂@NC与FeS₂/NiS₂/Ni₃S₂ (图5c)的表面差异较大，进一步表明已经在FeS₂/NiS₂/Ni₃S₂表面包覆上NC层。从图6a可以看出，FeS₂/NiS₂/Ni₃S₂@NC内部是中空结构。FeS₂/NiS₂/Ni₃S₂立方体的边长约为750 nm，表面塌陷。FeS₂/NiS₂/Ni₃S₂的结构不稳定，引入NC层可提高中空结构的稳定性。FeS₂/NiS₂/Ni₃S₂@NC立方体的边长约为800 nm，据此推测NC层的厚度约为50 nm。根据图6b给出的高倍率下FeS₂/NiS₂/Ni₃S₂@NC的TEM照片，NC层的厚度约为40.1 nm。

图6

图6 FeS₂/NiS₂/Ni₃S₂@NC不同放大倍率下的TEM图像、FeS₂/NiS₂/Ni₃S₂@NC的HRTEM图像以及FeS₂/NiS₂/Ni₃S₂@NC对应的EDS元素分布

Fig.6 TEM images of FeS₂/NiS₂/Ni₃S₂@NC with different magnifications (a, b), HRTEM image of FeS₂/NiS₂/Ni₃S₂@NC (c) and and corresponding EDS elemental mapping images (d) of FeS₂/NiS₂/Ni₃S₂@NC

从图6c中的高分辨率透射电镜(HRTEM)图像可见，复合材料主要有0.27、0.283和0.185 nm三种不同的晶格条纹，分别对应FeS₂的(200)晶面、NiS₂的(200)晶面和Ni₃S₂的(220)晶面。EDS元素分布图直观地给出了各种元素的分布，从图6d可见Ni、Fe、S、C、N五种元素均匀地分布在立方体中。

2.3 电化学性能

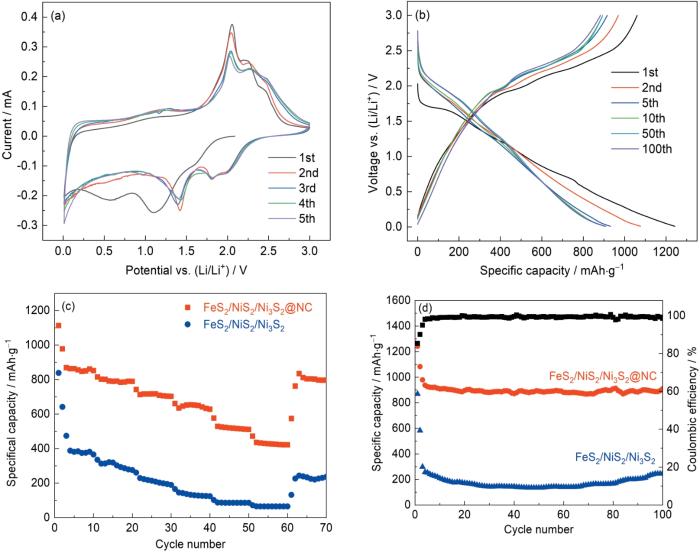

图7a给出了用FeS₂/NiS₂/Ni₃S₂@NC复合材料组装的CR2032扣式半电池的电化学性能。可以看出，在电压为0.01~3.0 V (vs. Li/Li⁺)，扫描速率为0.1 mV·s^-1条件下FeS₂/NiS₂/Ni₃S₂@NC有五个初始循环的CV曲线，涉及到的反应式有

图7

图7 扫描速率为0.1 mV·s^-1时FeS₂/NiS₂/Ni₃S₂@NC的CV曲线、电流密度为0.2 A·g^-1时FeS₂/NiS₂/Ni₃S₂@NC第1、2、5、10、50和100次循环的GCD分布、FeS₂/NiS₂/Ni₃S₂@NC和FeS₂/NiS₂/Ni₃S₂阳极的倍率性能以及电流密度为0.2 A·g^-1时FeS₂/NiS₂/Ni₃S₂@NC和FeS₂/NiS₂/Ni₃S₂的循环性能

Fig.7 CV curves of FeS₂/NiS₂/Ni₃S₂@NC at the scan rate of 0.1 mV·s^-1 (a), GCD profiles of FeS₂/NiS₂/Ni₃S₂@NC for the 1st, 2nd, 5th, 10th, 50th and 100th cycles at the current density of 0.2 A·g^-1 (b), the rate capability (c) and the cycling performance (d) at the current density of 0.2 A·g^-1 of FeS₂/NiS₂/Ni₃S₂@NC and FeS₂/NiS₂/Ni₃S₂

F e S_{2} + x L i^{+} + x e^{-} \leftrightarrow L i_{x} F e S_{2}

(6)

L i_{x} F e S_{2} + (4 - x) L i^{+} + (4 - x) e^{-} \leftrightarrow F e + 2 L i_{2} S

(7)

N i S_{2} + x L i^{+} + x e^{-} \leftrightarrow L i_{x} N i S_{2}

(8)

L i_{x} N i S_{2} + (4 - x) L i^{+} + (4 - x) e^{-} \leftrightarrow N i + 2 L i_{2} S

(9)

N i_{3} S_{2} + x L i^{+} + x e^{-} \leftrightarrow L i_{x} N i_{3} S_{2}

(10)

L i_{x} N i_{3} S_{2} + (4 - x) L i^{+} + (4 - x) e^{-} \leftrightarrow 3 N i + 2 L i_{2} S

(11)

第一次阴极扫描时在0.58 V处出现一个还原峰，但是在后续的几圈循环中消失，其原因是在电极表面生成了固体电解质界面层(SEI)。位于1.11和1.62 V处的峰，与NiS₂、Ni₃S₂和FeS₂部分锂化进而转化成Ni、Fe和Li₂S有关^[23~25]。在阳极扫描过程中，位于2.06和2.21 V的氧化峰与Ni⁰氧化成NiS₂和Ni₃S₂有关，位于2.44 V的氧化峰与Fe⁰的氧化有关^[25~27]。位于1.11和1.62 V的还原峰分别移动到1.41和1.80 V，是结构重排以及Li⁺与电极材料发生复杂的化学反应造成的^[5]。位于2.06、2.21和2.44 V的氧化峰略微移动到2.05、2.26和2.46 V，重合度较好。从第三个循环开始峰位不再随着循环次数的增加而变化，表明FeS₂/NiS₂/Ni₃S₂@NC电极具有良好的循环可逆性和稳定性。

图7b给出了电流密度为0.2 A·g^-1时FeS₂/NiS₂/Ni₃S₂@NC电极在0.01~3.0 V (vs. Li/Li⁺)电压窗口下第1、2、5、10、50和100次循环的放电/充电电压分布。在第一次循环中初始库仑效率(CE)为85.36%，放电比容量和充电比容量分别为1242.2和1070.3 mAh·g^-1。电池的初始库仑效率较低，主要原因是充放电过程中电解液的还原分解和SEI膜的生成^[28]。在第二个循环中，库仑效率提高到90.08%，放电容量降低到1076.6 mAh·g^-1，对应的充电容量为969.8 mAh·g^-1。第5个循环的库仑效率为98.35%，第10、50和100圈循环的库伦效率接近100%，表明充放电过程具有良好的可逆性和循环稳定性。

图7c给出了FeS₂/NiS₂/Ni₃S₂@NC和FeS₂/NiS₂/Ni₃S₂在不同电流密度下的倍率性能。可以看出，在不同电流密度下FeS₂/NiS₂/Ni₃S₂@NC材料具有比单纯的金属硫化物材料更高的比容量和循环稳定性。随着电流密度从0.1 A·g^-1增大到0.2、0.5、1.0、2.0和3.0 A·g^-1，平均比容量分别为895.5、791.8、711.4、643.7、518.9和427.5 mAh·g^-1。随着电流密度恢复到0.1 A·g^-1，比容量随之迅速恢复到806.0 mAh·g^-1，表明FeS₂/NiS₂/Ni₃S₂@NC电极具有优异的锂存储可逆性和循环稳定性。相比之下，FeS₂/NiS₂/Ni₃S₂电极的倍率性能很低，在对应的电流密度下平均比容量分别为460.7、300.6、208.8、132.4、86.4和65.2 mAh·g^-1，而电流密度返回到0.1 A·g^-1后比容量只能恢复到231.5 mAh·g^-1。其原因可能是中空FeS₂/NiS₂/Ni₃S₂立方体没有NC层的支撑，材料由低电流密度向高电流密度充放电时体积膨胀使结构粉碎，降低了电极材料的倍率性能^[29]。这表明，中空FeS₂/NiS₂/Ni₃S₂@NC纳米立方体复合材料能极大地缓解体积膨胀，从而提高中空结构的稳定性和降低容量衰减，使其具有优异的倍率性能。

图7d给出了FeS₂/NiS₂/Ni₃S₂@NC和FeS₂/NiS₂/Ni₃S₂在0.2 A·g^-1的循环性能。可以看出，FeS₂/NiS₂/Ni₃S₂@NC电极的可逆容量为899.4 mAh·g^-1，约为FeS₂/NiS₂/Ni₃S₂电极(245.7 mAh·g^-1)的3倍。FeS₂/NiS₂/Ni₃S₂@NC电极的库伦效率达到了99.52%，表明Li⁺嵌入/脱出过程的可逆性极好。在前5次循环中FeS₂/NiS₂/Ni₃S₂@NC电极的比容量逐渐降低，是SEI膜的生成所致。此后的95圈循环几乎是一条直线，表明这种材料的循环稳定性极为优异。图8给出了FeS₂/NiS₂/Ni₃S₂@NC和FeS₂/NiS₂/Ni₃S₂电极材料在1.0 A·g^-1电流密度下循环500次的对比图，可见FeS₂/NiS₂/Ni₃S₂@NC电极材料在高电流密度下仍具有较高的容量(561.8 mAh·g^-1)，而无碳层的FeS₂/NiS₂/Ni₃S₂电极材料在前4圈循环的比容量就从681.9 mAh·g^-1骤降到302.1 mAh·g^-1。这个结果表明，NC层的引入有助于维持电极材料的比容量和降低容量的损失。从图中还可见，FeS₂/NiS₂/Ni₃S₂电极材料在200圈后比容量有上升的趋势且在大约450圈平稳，其原因可能是电极逐渐活化^[30]。

图8

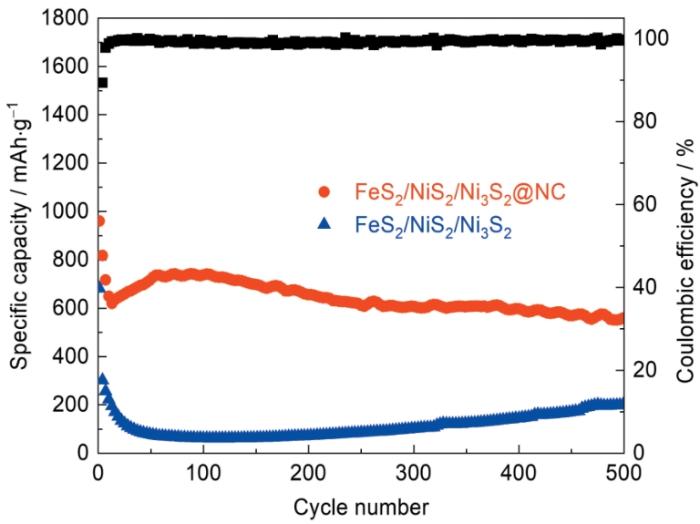

图8 电流密度为1.0 A·g^-1时FeS₂/NiS₂/Ni₃S₂@NC和FeS₂/NiS₂/Ni₃S₂循环500圈后性能的对比

Fig.8 Composion at the current density of 1.0 A·g^-1 after 500 cycles of FeS₂/NiS₂/Ni₃S₂@NC and FeS₂/NiS₂/Ni₃S₂

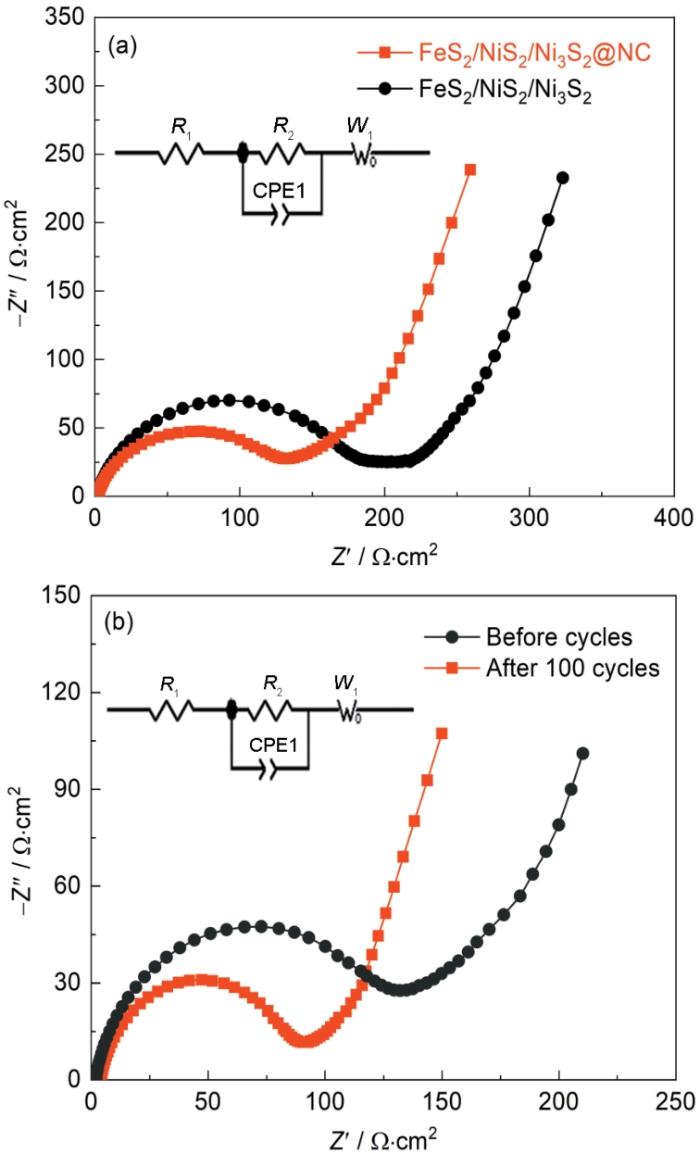

图9给出了FeS₂/NiS₂/Ni₃S₂和FeS₂/NiS₂/Ni₃S₂@NC电极材料循环前后的电化学阻抗谱(EIS)对比，图中的EIS曲线均由半圆和斜线组成，高频到中频范围内的半圆与界面电荷转移过程有关，低频区域的斜率线(也称为Warburg阻抗)与Li⁺的固态扩散有关^[31,32]。图9a给出的拟合结果表明，FeS₂/NiS₂/Ni₃S₂@NC的电荷转移电阻(R_ct)远小于FeS₂/NiS₂/Ni₃S₂的电荷转移电阻，表明FeS₂/NiS₂/Ni₃S₂@NC材料具有更好的电化学反应动力学和更高的电荷转移速度。从图9b可以明显地看出，100圈循环后的阻抗比循环前的小。这表明，循环后中空FeS₂/NiS₂/Ni₃S₂@NC立方体材料的电极反应动力学得到了优化，中空结构和碳材料的引入使其电化学性能更加稳定。

图9

图9 FeS₂/NiS₂/Ni₃S₂@NC和FeS₂/NiS₂/Ni₃S₂未循环前的阻抗对比和FeS₂/NiS₂/Ni₃S₂@NC循环100圈后阻抗对比图

Fig.9 EIS spectra of FeS₂/NiS₂/Ni₃S₂@NC and FeS₂/NiS₂/Ni₃S₂(a) before the cycle and FeS₂/NiS₂/Ni₃S₂@NC after 100 cycles (b)

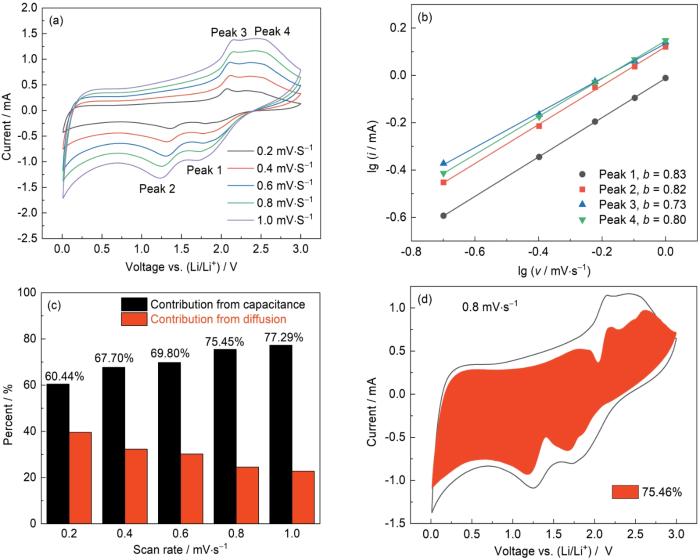

图10a给出了FeS₂/NiS₂/Ni₃S₂@NC电极的存储行为和锂离子电池中的反应动力学。扫描速率为0.2~1.0 mV·s^-1时的CV曲线表明，随着扫描速率的提高阳极峰的峰值电流逐渐增大，阴极峰的峰值电流逐渐减小，CV曲线围成的面积不断增大。在一般情况下，CV曲线峰电流i与扫描速率υ之间的关系跟

图10

图10 FeS₂/NiS₂/Ni₃S₂@NC在不同扫速下的CV曲线、不同氧化还原峰处的lg(i)与lg(ʋ)的比值、不同扫速下的赝电容和扩散控制电容贡献率以及0.8 mV·s^-1下的赝电容贡献

Fig.10 CV curves of FeS₂/NiS₂/Ni₃S₂@NC at various scan rates (a), the ratios of lg(i) to lg(ʋ) at different oxidation/reduction peaks (b), the contribution of capacitance and diffusion controlled capacitance at different scan rates (c), the proportions of capacitance in the total charge contribution (d) at a scan rate of 0.8 mV·s^-1

i = a v^{b}

(7)

和

l g (i) = b l g (v) + l g (a)

(8)

符合^[23,33]。其中a和b是可调参数， $b$ 的数值与电荷存储机理有关。b值接近0.5表明以扩散过程控制为主，b值接近1表明以电容性行为为主。将图10a拟合后得到图10b，lg(i)和lg(υ)具有明显的线性关系，进行数学拟合得到四处峰的b值分别为0.83、0.82、0.73和0.80，表明FeS₂/NiS₂/Ni₃S₂@NC电极的电化学反应存在两种控制过程。除了分峰值3以外，另外3个峰值都是以电容控制过程为主。赝电容控制的相对贡献率由公式^[34]

i (V) = k_{1} v + k_{2} v^{1 / 2}

(9)

计算，其中k₁υ和k₂υ^1/2分别表示电容控制过程和扩散控制过程的贡献。图10c表明，随着扫描速率的提高电容贡献率随之提高。扫描速率为0.2、0.4、0.6、0.8和1.0 mV·s^-1时可计算出电容贡献占比分别为60.44%、67.70%、69.80%、75.45%和77.29%。图10d给出了电极以0.8 mV·s^-1扫速时的赝电容贡献(红色区域)。测试结果表明，FeS₂/NiS₂/Ni₃S₂@NC电极具有高倍率性能的主要原因，是其存储行为和反应机理以赝电容为主。

3 结论

以Cu₂O为自牺牲模板，采用简单安全的CEP路线可制备倍率性能和循环可逆性优异的中空FeS₂/NiS₂/Ni₃S₂@NC复合材料。引入NC层，能提高FeS₂/NiS₂/Ni₃S₂@NC的导电性和加快反应动力学。部分金属硫化物纳米颗粒嵌入NC层能抑制金属纳米颗粒的积累和溶解，提高锂离子电池的循环稳定性。中空立方体结构能提供充足的空间，减少Li⁺嵌入和脱离引起的机械应力，降低体积膨胀和容量的损耗，显著提高FeS₂/NiS₂/Ni₃S₂@NC材料的比容量和循环性能。
