<strong>FeCoCrNiMo/Al-10Si</strong>复合材料的制备及其摩擦磨损性能

doi:10.11901/1005.3093.2025.367

材料研究学报

2026, Vol. 40

Issue (10): 746-756 DOI: 10.11901/1005.3093.2025.367

研究论文

本期目录 | 过刊浏览

FeCoCrNiMo/Al-10Si复合材料的制备及其摩擦磨损性能

胡勇(

), 乔增欢, 辛宇

华东交通大学材料科学与工程学院南昌 330013

Fabrication and Tribological Performance of FeCoCrNiMo/Al-10Si Composites

HU Yong(

), QIAO Zenghuan, XIN Yu

School of Materials Science and Engineering, East China Jiaotong University, Nanchang 330013, China

引用本文:

胡勇, 乔增欢, 辛宇. FeCoCrNiMo/Al-10Si复合材料的制备及其摩擦磨损性能[J]. 材料研究学报, 2026, 40(10): 746-756.
Yong HU, Zenghuan QIAO, Yu XIN. Fabrication and Tribological Performance of FeCoCrNiMo/Al-10Si Composites[J]. Chinese Journal of Materials Research, 2026, 40(10): 746-756.

全文: PDF(23256 KB) HTML

摘要:

用激光沉积制备了FeCoCrNiMo/Al-10Si复合材料，使用光学显微镜(OM)、扫描电镜(SEM)、透射电镜(TEM)、UMT-3摩擦磨损机等手段表征其组织形貌、微区成分和性能，研究了这种材料的摩擦磨损性能。结果表明，随着FeCoCrNiMo高熵合金增强相含量的提高，α-Al的晶粒尺寸逐渐减小，增强相由球状转变为花瓣状最后变为粗大鱼骨状。FeCoCrNiMo高熵合金增强相与Al基体之间生成了厚度约30 nm的Al₃Ni₂界面反应层。随着FeCoCrNiMo高熵合金增强相含量的提高，FeCoCrNiMo/Al-10Si复合材料的耐磨性随之提高，但是FeCoCrNiMo高熵合金含量高于10% (质量分数)时，耐磨性提高的幅度降低。随着FeCoCrNiMo高熵合金增强相含量的提高，这种复合材料的磨损机制由疲劳磨损和粘着磨损转变为磨粒磨损。

关键词 ：复合材料, FeCoCrNiMo, 铝基复合材料, 激光沉积, 显微组织, 耐磨性能

Abstract：

Composites of FeCoCrNiMo/Al-10Si were fabricated by laser deposition technique with mixed powder of FeCoCrNiMo and Al-10Si as raw material. The microstructure, local composition and tribological properties of the composites were characterized by optical microscopy, scanning electron microscopy, transmission electron microscopy, and UMT-3 tribometer. The results demonstrate that the α-Al grain size gradually decreases with the increasing mass fraction of FeCoCrNiMo reinforcements. The morphology of the reinforcing phase evolves from initially spherical to petal-like, and finally to a coarse fishbone structure. A distinct interfacial reaction layer with a thickness of approximately 30 nm is formed between the FeCoCrNiMo high-entropy alloy and the Al matrix, which can be identified as Al₃Ni₂. As the mass fraction of the FeCoCrNiMo reinforcements increases, the wear resistance of the composites was improved correspondingly. However, when the mass fraction of FeCoCrNiMo exceeds 10%, the enhancement in wear resistance becomes less pronounced. The dominant wear mechanism shifts from fatigue and adhesive wear to abrasive wear.

Key words： composites FeCoCrNiMo Al-matrix composites laser deposition microstructure wear resistance

收稿日期: 2025-12-16

ZTFLH:

TB331

基金资助:国家自然科学基金(51865011)

通讯作者: 胡勇，教授，huyong@ecjtu.edu.cn，研究方向为金属及其复合材料

Corresponding author: HU Yong, Tel: 13576012078, E-mail: huyong@ecjtu.edu.cn

作者简介: 胡勇，男，1982年生，博士

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	胡勇
	乔增欢
	辛宇
44.8K

链接本文:

https://www.cjmr.org/CN/10.11901/1005.3093.2025.367 或 https://www.cjmr.org/CN/Y2026/V40/I10/746

图2 FeCoCrNiMo/Al-10Si复合材料晶粒的平均尺寸

图1 FeCoCrNiMo/Al-10Si复合材料的显微组织

图3 FeCoCrNiMo/Al-10Si复合材料中增强相的形貌

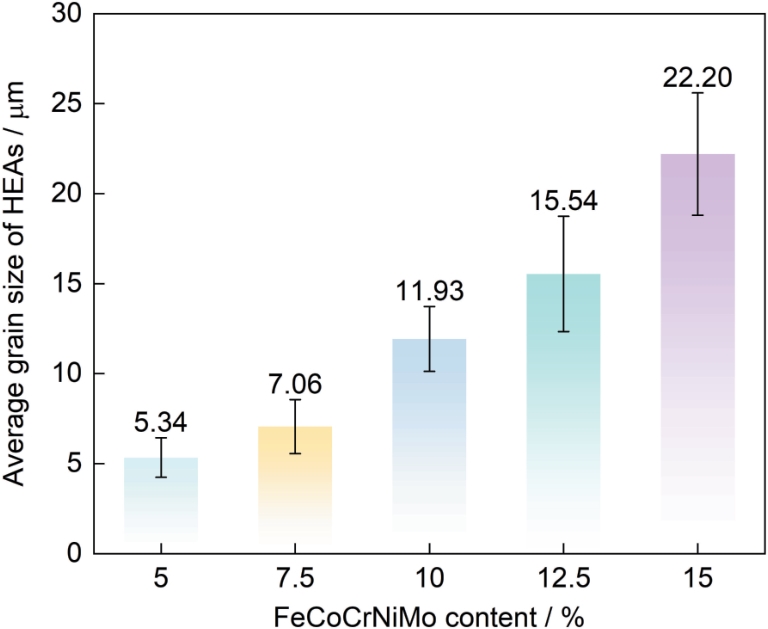

图4 FeCoCrNiMo增强相晶粒的平均尺寸

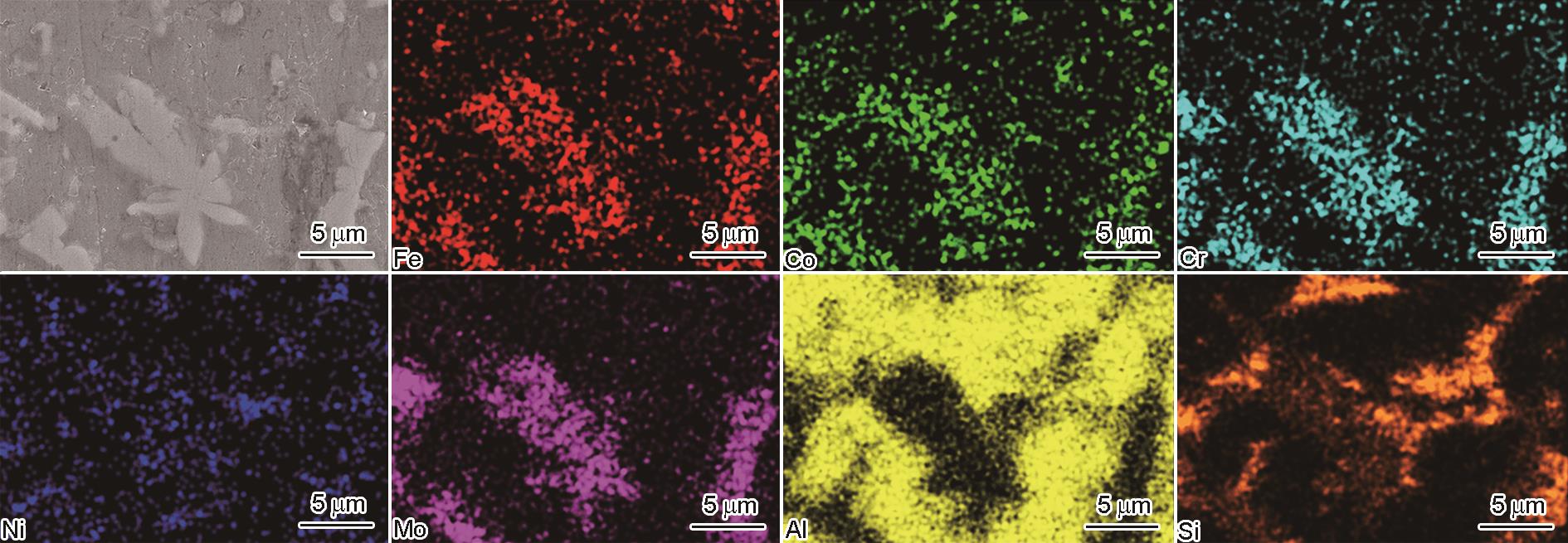

图5 A10复合材料的SEM-EDS分析

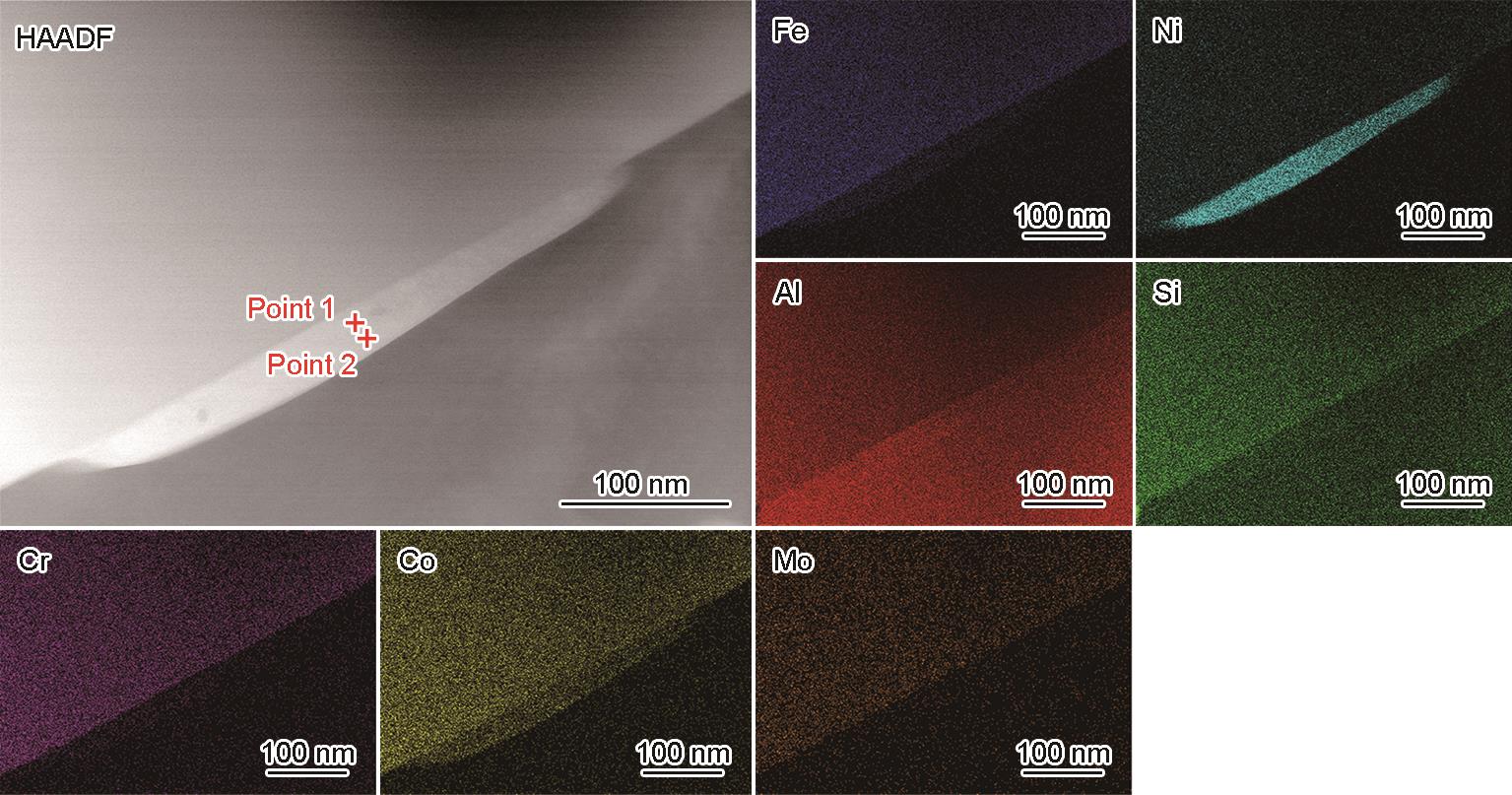

图6 A15复合材料的TEM照片

表1 不同元素之间的ΔHmix值(kJ/mol)

表2 A15复合材料中扩散层的点扫描

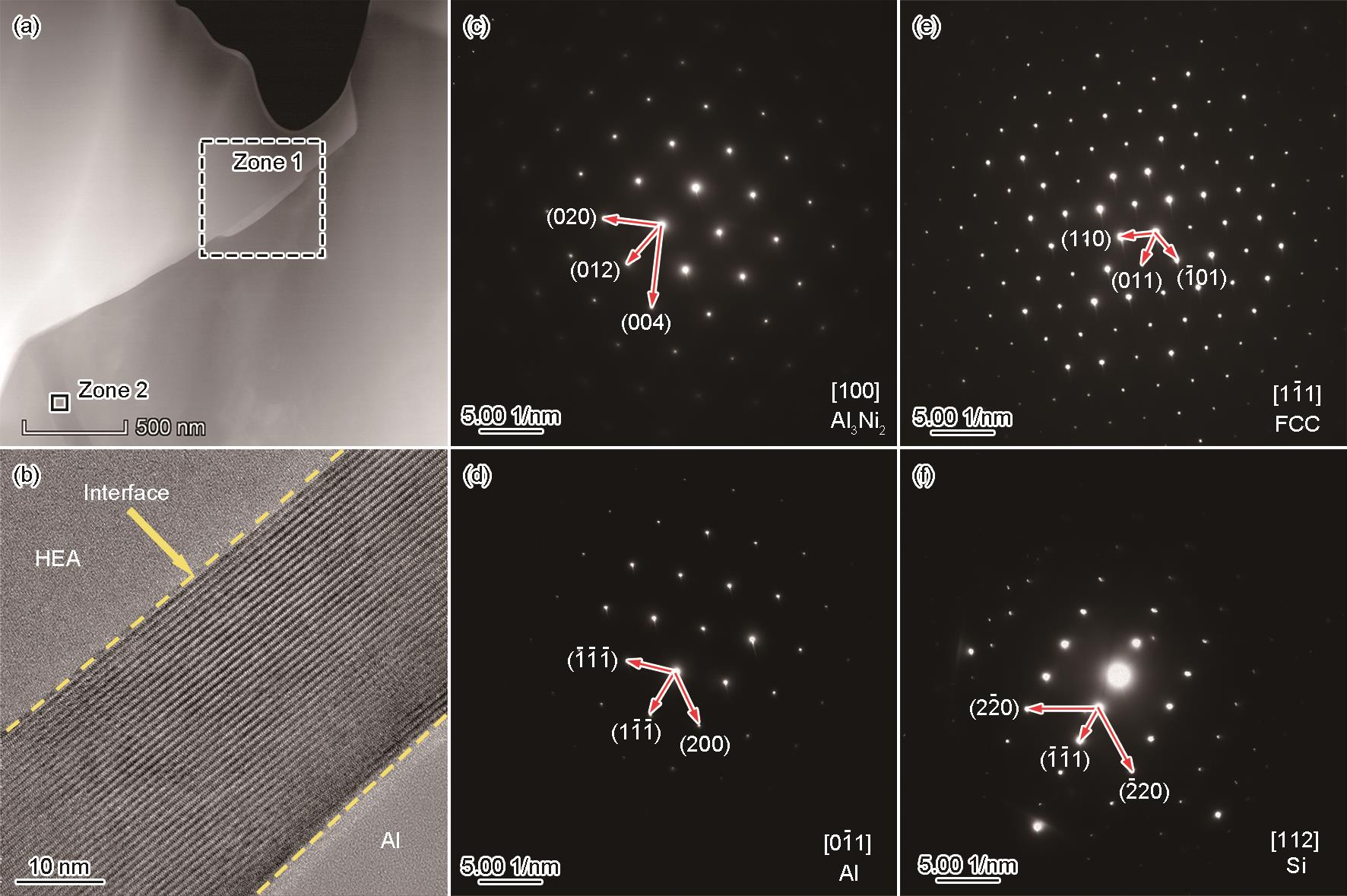

图7 A15复合材料的亮场(BF)图和选区电子衍射(SAED)图

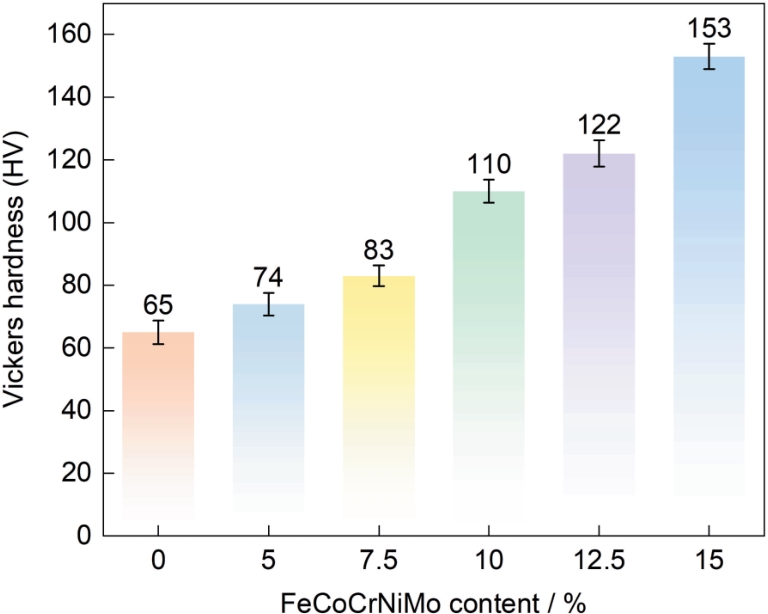

图8 FeCoCrNiMo/Al-10Si复合材料的显微硬度

图9 FeCoCrNiMo/Al-10Si复合材料的摩擦系数

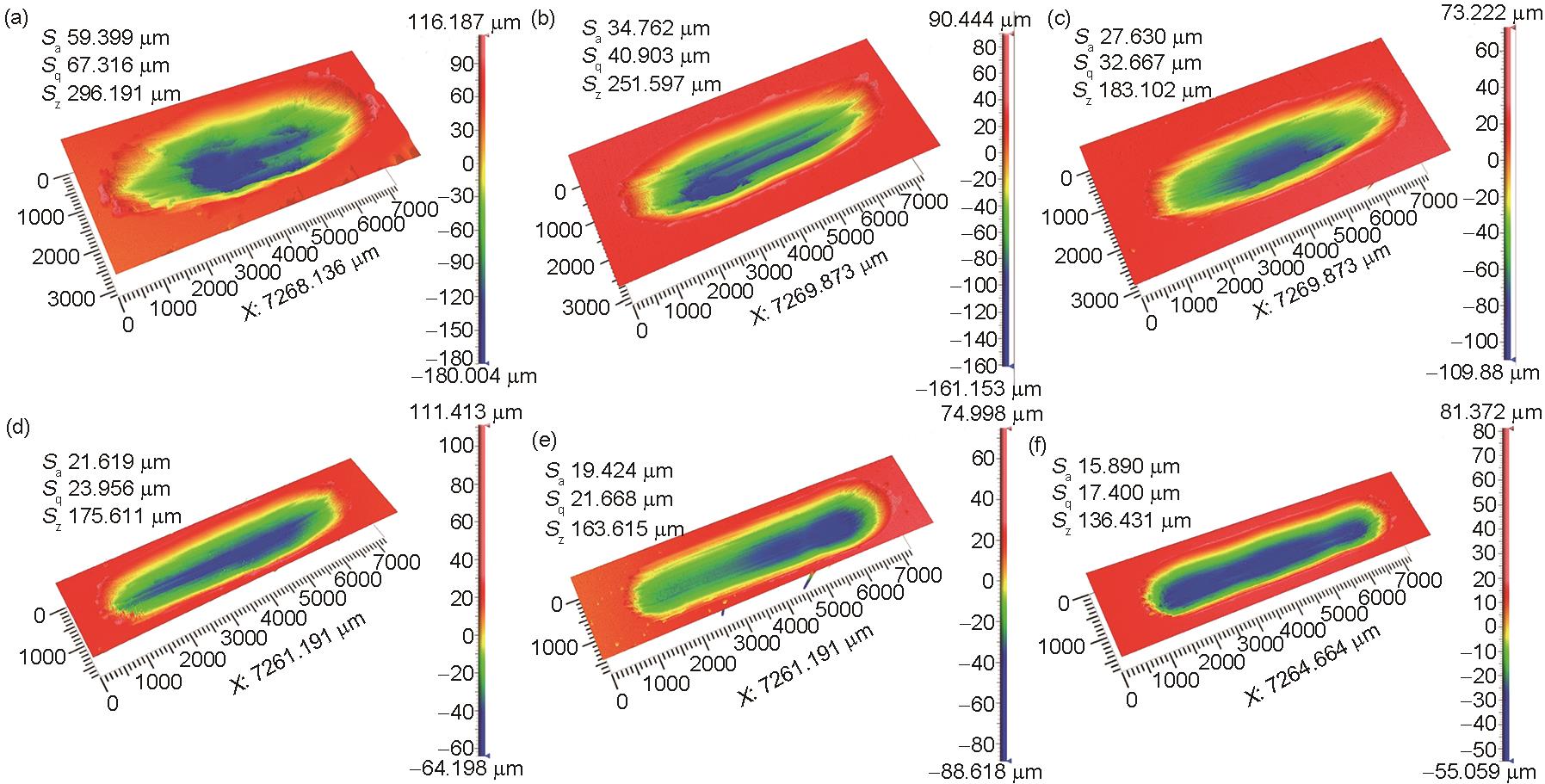

图10 FeCoCrNiMo/Al-10Si复合材料的磨痕三维轮廓形貌

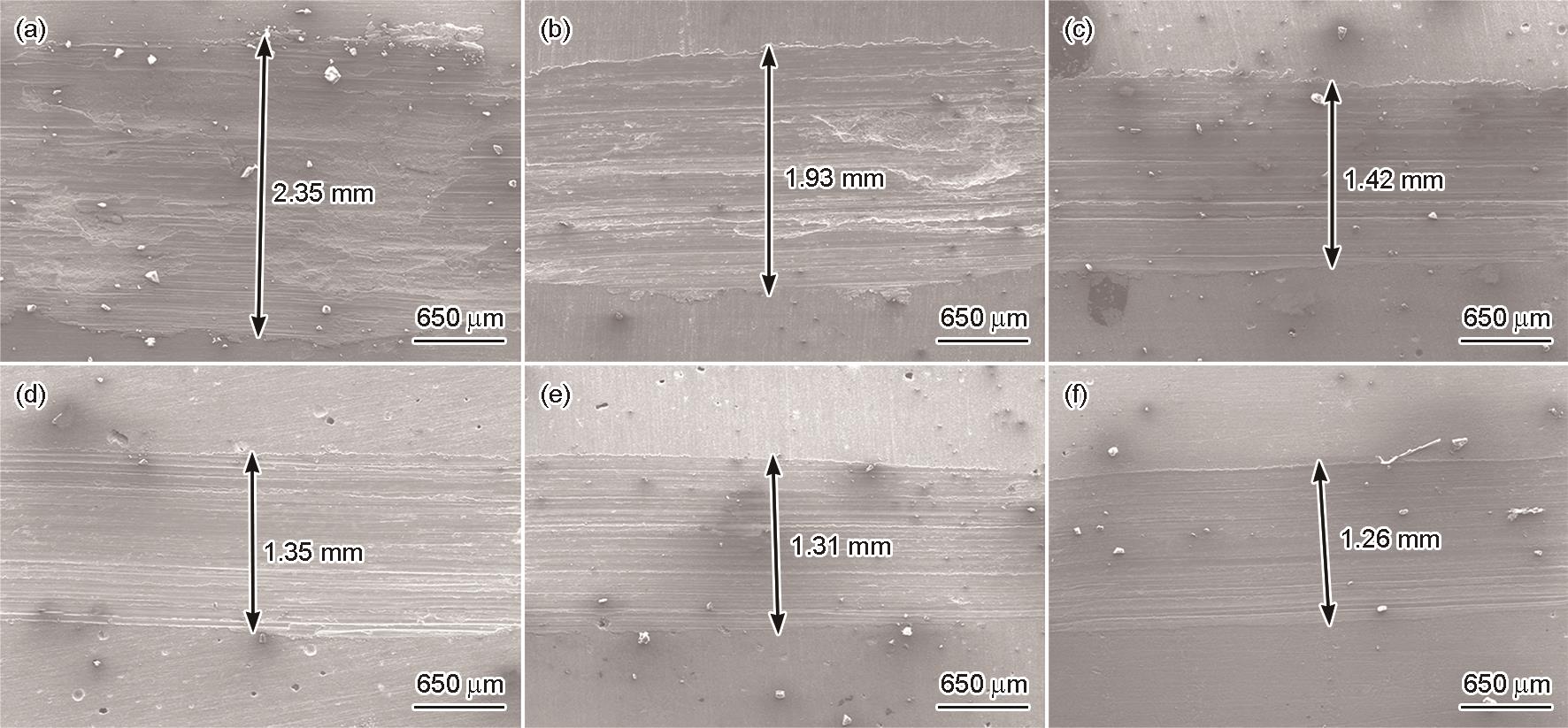

图11 FeCoCrNiMo/Al-10Si复合材料磨痕的宏观形貌

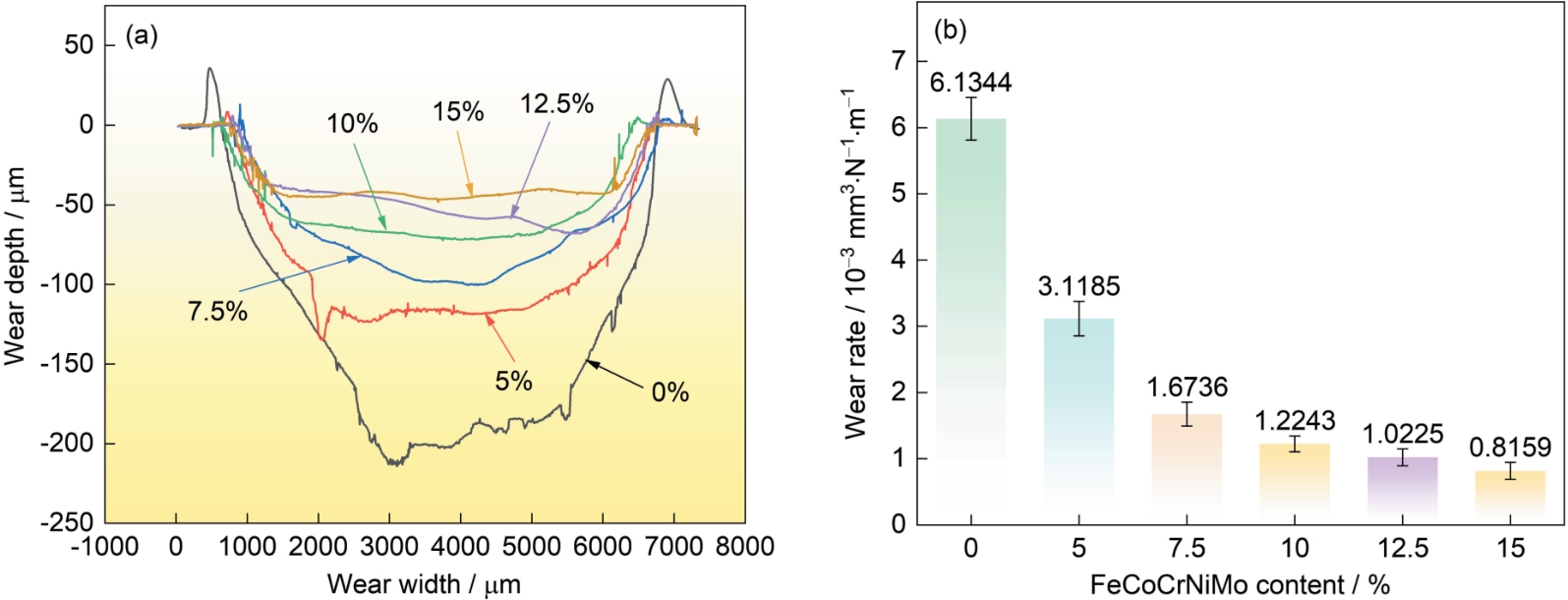

图12 FeCoCrNiMo/Al-10Si复合材料的磨痕截面轮廓和磨损率

表3 FeCoCrNiMo/Al-10Si磨损表面的EDS分析

图13 FeCoCrNiMo/Al-10Si复合材料磨面的形貌
