Zr-2合金表面ZrO2/Cr复合膜的高温蒸汽氧化行为
1.
2.
3.
High Temperature Steam Oxidation Behavior of Zr-2 Alloy with ZrO2/Cr Composite Coating
1.
2.
3.
通讯作者: 王兴平,wangxplju@163.com,研究方向为金属表面处理
收稿日期: 2022-11-28 修回日期: 2023-01-29
基金资助: |
|
Corresponding authors: WANG Xingping, Tel:
Received: 2022-11-28 Revised: 2023-01-29
Fund supported: |
|
作者简介 About authors
王兴平,男,1992年生,博士
用微弧氧化(MAO)和磁过滤阴极真空弧离子镀(FCVAD)在Zr-2合金表面制备ZrO2/Cr复合膜,用热重分析仪(TGA)评估了Zr-2合金基体和ZrO2/Cr复合膜在900~1100℃蒸汽环境中的抗氧化性能,并分析其氧化后氧化层的截面结构、相组成和成分深度分布。结果表明,在900、1000和1100℃蒸汽环境中分别氧化3600 s后,ZrO2/Cr复合膜试样单位面积增重约为Zr-2合金基体的3/8、1/4和2/5。在高温蒸汽环境中,ZrO2/Cr复合膜表面氧化生成的致密Cr2O3膜能抑制氧向内扩散,提高锆合金的抗蒸汽氧化性能,阻止锆试样在1000℃蒸汽环境中出现分离氧化。ZrO2/Cr复合膜的表面Cr层完全消耗前,Cr涂层的氧化主要取决于铬向外扩散,而不是氧向内扩散。在蒸汽氧化过程中,MAO膜的中间层能抑制氢渗透进入锆合金基体。
关键词:
A ZrO2/Cr composite coating on Zr-2 alloy was prepared by micro-arc oxidation (MAO) and filtered cathodic vacuum arc deposition (FCVAD) treatments. The oxidation resistance of bare and ZrO2/Cr-coated Zr alloys was estimated in 900~1100°C steam environment using a thermogravimetric analyzer (TGA) and their cross-sectional structures, phase constituents and composition depth profiles before and after steam oxidation were analyzed. The results showed that the mass gain per unit area of ZrO2/Cr-coated Zr alloy was about 3/8, 1/4 and 2/5 of that of bare Zr alloy after 3600 s steam oxidation at 900, 1000 and 1100℃, respectively. In high temperature water vapor, the dense Cr2O3 film formed on the surface of ZrO2/Cr-coated one suppressed the inward oxygen diffusion, which improved the steam oxidation resistance of Zr-2 alloy and inhibited the occurrence of breakaway oxidation at 1000°C. Before the Cr layer of ZrO2/Cr composite coating was completely oxidized into Cr2O3, the oxidation of Cr layer was principally controlled by the outward chromium diffusion rather than inward oxygen diffusion. The MAO interlayer restrained hydrogen permeation into Zr alloy substrate during the steam oxidation.
Keywords:
本文引用格式
王兴平, 薛文斌, 王文选.
WANG Xingping, XUE Wenbin, WANG Wenxuan.
Cr涂层是耐事故燃料(ATF)包壳候选涂层,在高温蒸汽或高温高压水环境中具有优异的抗氧化性和耐腐蚀性能[3,4,9,10]。Park[4]采用电弧离子镀在Zr-4合金表面制备了厚度约为10 μm的Cr涂层,在1200℃蒸汽氧化2000 s后增重约为锆合金基体的1/2。在360℃/18.7 MPa静态水溶液中腐蚀60 d后,Cr涂层试样的腐蚀增重仅为锆合金基体的18.5%[9]。但是,在高温高压水环境服役条件下,Zr和Cr之间较大的电位差使Zr和Cr直接接触易发生电偶腐蚀[11,12]。同时,在高温蒸汽环境中Cr涂层与锆基体界面易发生严重的互扩散,生成吸氢的ZrCr2和Zr(Fe, Cr)2相使Cr涂层/Zr包壳体系的韧性降低[3,13]。因此,必须在Cr涂层和Zr基体之间插入绝缘层以防止电偶腐蚀和Cr向内扩散。
本文用MAO技术在Zr-2合金表面制备ZrO2薄膜,然后用FCVAD技术在MAO膜表面沉积Cr涂层,在900~1100℃蒸汽环境中评估Zr-2合金基体和ZrO2/Cr复合膜的蒸汽氧化性能并讨论其蒸汽氧化机理。
1 实验方法
将实验用Zr-2合金线切割成尺寸为10 mm×10 mm×1 mm的样品,用不同型号的水砂纸依次打磨。然后用双极性电源在优化的磷酸盐电解液中对其进行微弧氧化(MAO)处理。电解液的成分为6 g/L Na3PO4·12H2O + 1 g/L KOH + 20 mL/L甘油,即将18 g固体Na3PO4·12H2O和3 g KOH溶解于3 L去离子水中,然后向溶液中添加60 mL甘油。加载电压为475 V/-35 V,频率为75 Hz,处理时间为20 min。在Zr-2合金表面成功制备ZrO2绝缘膜后,用磁过滤阴极真空弧离子镀(FCVAD)技术在MAO膜试样表面沉积Cr涂层。纯度为99.5%的Cr靶在90 A的弧电流作用下激发形成Cr等离子体,用90°的磁过滤弯管将其引入样品室。沉积前,将样品室的真空抽至4×10 -3 Pa。然后在800、600、400 V的负脉冲偏压下分别用Cr等离子体溅射1 min,以清除表面污染物。最后,在50 V的负脉冲偏压、80%的占空比条件下沉积Cr涂层2 h。同时,在相同条件下在试样背面沉积Cr涂层。
为了模拟LOCA事故条件,用热重分析仪(TGA,SETARAM SETSYS)分别在900、1000和1100℃蒸汽环境中对Zr-2合金基体和ZrO2/Cr复合膜进行蒸汽氧化测试。将试样安装在炉内Pt挂钩后,在纯度为99.99%的Ar气保护下以50℃/min的升温速率加热到设定温度。然后以氩气为载气将湿度为50%的水蒸汽以50 mL/min的速率引入炉内,保温3600 s后将试样在Ar气环境中冷却至室温。为了保证增重曲线具有好的重复性,每个蒸汽氧化重复测试三次。
用Hitachi S-4800型扫描电镜观察蒸汽氧化前后Zr-2合金基体和ZrO2/Cr复合膜的截面结构,用X' Pert Pro MPD型X射线衍射仪和Spectruma GDA750HR型辉光放电谱仪分析它们的相组成和成分深度分布。同时,将蒸汽氧化后的截面样品在5% HF + 45% HNO3 + 50% H2O混合酸中刻蚀15 s,用Carl Zeiss Image A2m型光学显微镜观察它们的截面金相组织。
2 实验结果
2.1 ZrO2/Cr复合膜的微观结构及成分
图1
图1

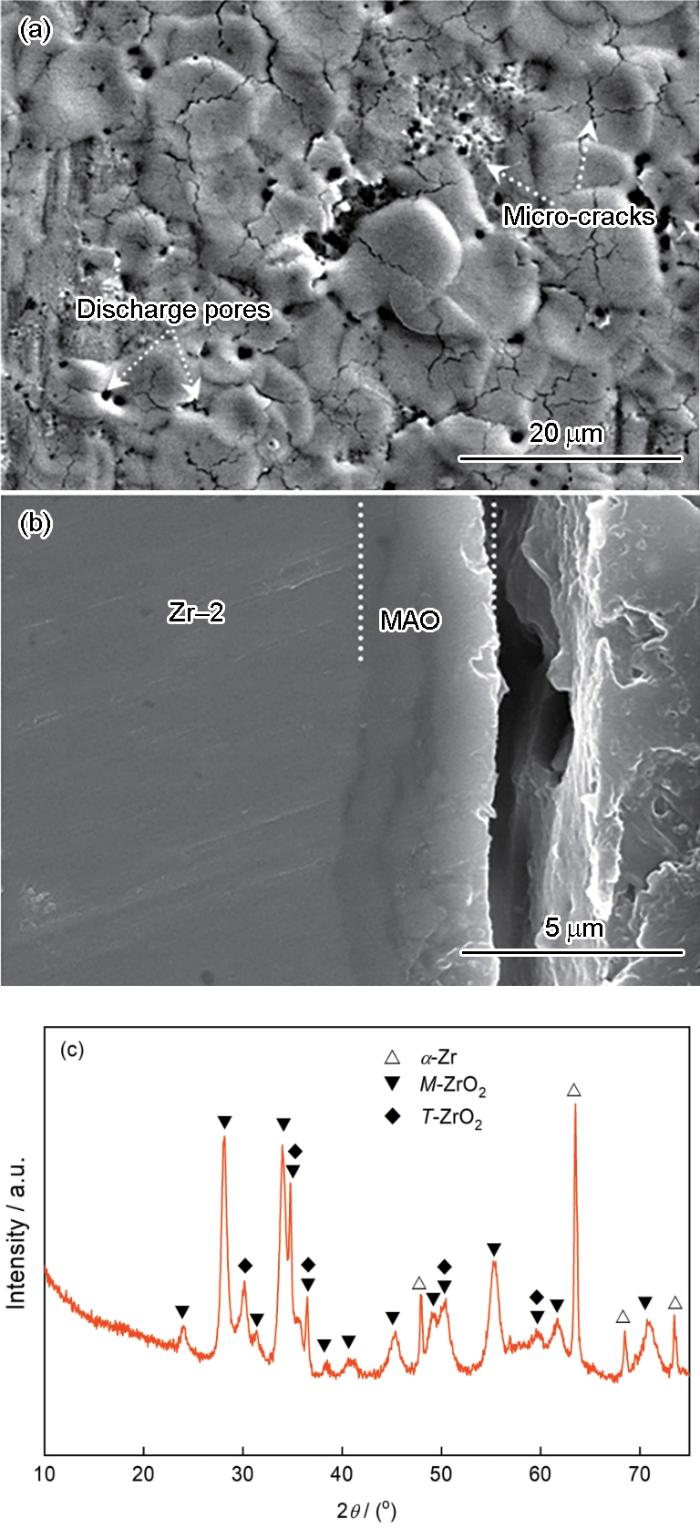

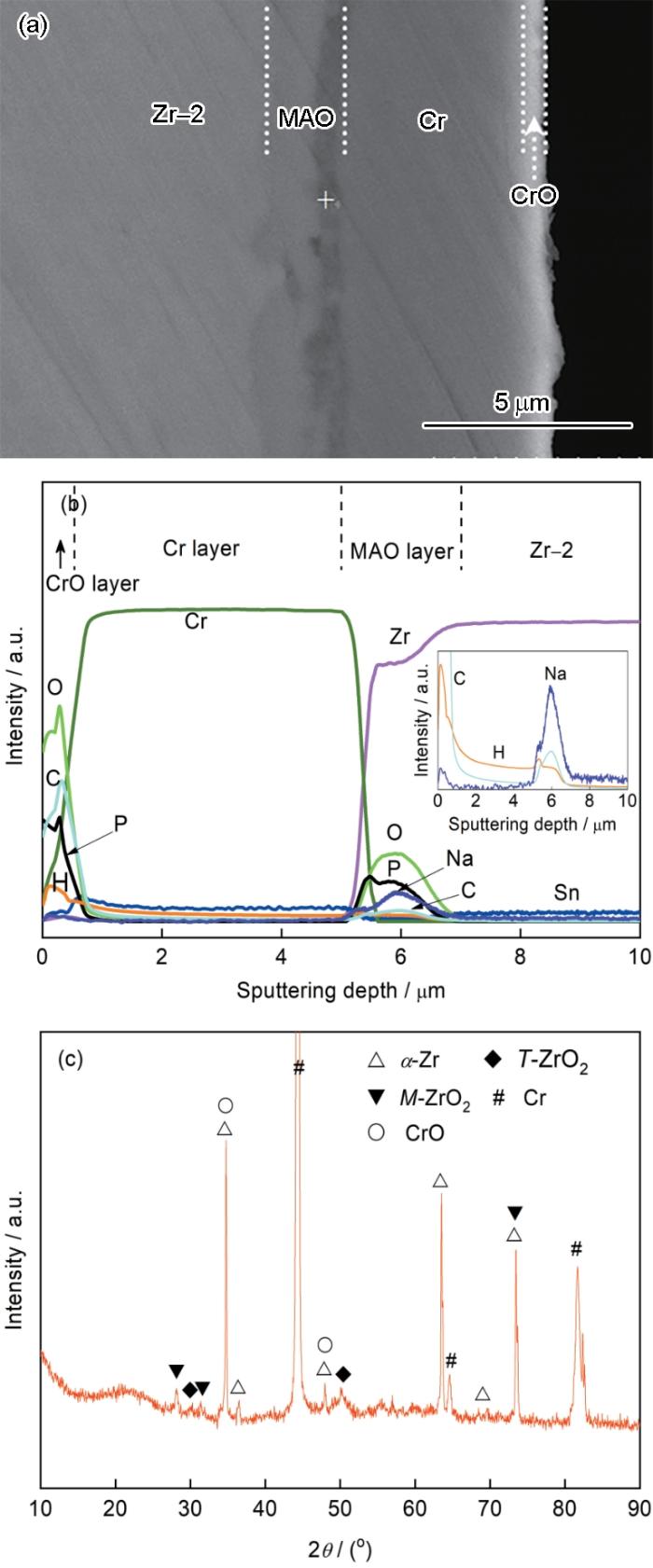

Zr-2合金表面微弧氧化膜的形貌、结构和相组成
Fig.1
Morphology, microstructure and phase compon-ent of MAO-coated Zr-2 alloy (a) surface morp-hology, (b) cross-sectional microstructure, (c) XRD pattern
图2
图2
Zr-2合金表面ZrO2/Cr复合膜的结构、成分和相组成
Fig.2
Microstructure, compositions and phase compon-ent of ZrO2/Cr composite coating on Zr-2 alloy.
(a) cross-sectional microstructure, (b) GDOES composition depth profiles, (c) XRD pattern. The inserted figure in Fig.2b is the magnified composition depth profiles of Na, H and C elements
图2b给出了ZrO2/Cr复合膜的GDOES成分深度分布。可以看出,MAO膜中间层由Zr和O元素组成,在ZrO2中间层中还检测到P、Na、H、C等微量元素。Zr源于Zr-2合金基体,O、P、Na、H、C源于磷酸盐电解液。图2b插图表明,在ZrO2中间层中探测到微弱的H峰,这是等离子体放电过程中少量吸附在MAO膜中的水分子与锆基体反应释放出氢气的结果[23]。在强电场作用下,磷酸根离子
2.2 ZrO2/Cr复合膜的高温蒸汽氧化特性
图3
图3

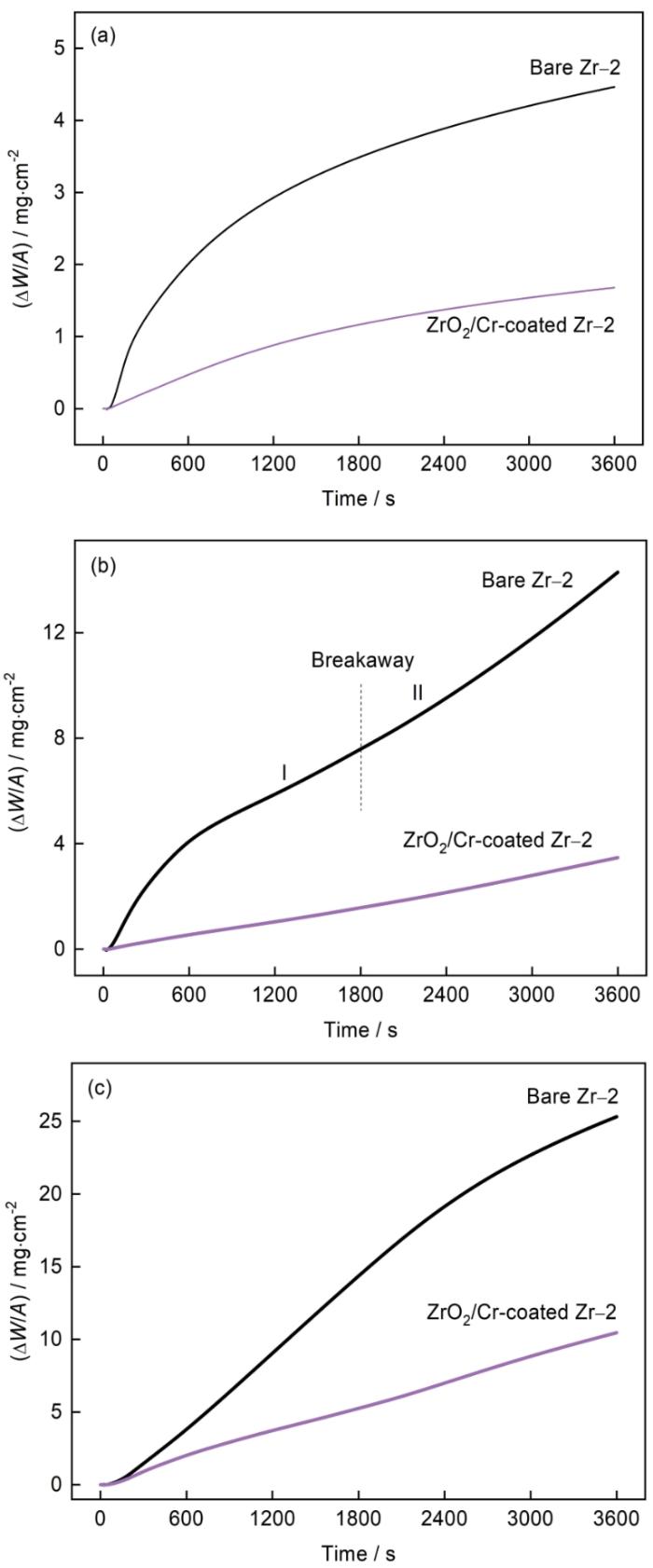

Zr-2合金及ZrO2/Cr复合膜在不同温度蒸汽中的氧化动力学曲线
Fig.3
Oxidation kinetics curves of bare and ZrO2/Cr-coated Zr-2 alloy in steam environment at different temperatures (a) 900℃, (b) 1000℃, (c) 1100℃
式中ΔW/A为单位面积增重(mg/cm2),n和Kn为氧化速率指数(n=1, 2或3)和速率常数((mg/cm2)n/s),t是氧化时间(s)。拟合结果列于表1。
表1 Zr-2合金及ZrO2/Cr复合膜在不同温度蒸汽中氧化动力学参数
Table 1
Temperature/℃ | Bare Zr-2 | ZrO2/Cr-coated Zr-2 | ||||||
---|---|---|---|---|---|---|---|---|
Ⅰ | Ⅱ | Ⅰ | Ⅱ | |||||
Kn | n | Kn | n | Kn | n | Kn | n | |
900 | 2.67×10-2 | 3 | - | - | 8.60×10-4 | 2 | - | - |
1000 | 3.18×10-2 | 2 | 3.74×10–3 | 1 | 9.49×10-4 | 1 | - | - |
1100 | 2.01×10-1 | 2 | - | - | 2.88×10-3 | 1 | - | - |
图3和表1表明,在900和1100℃蒸汽氧化环境中Zr-2合金基体氧化动力学曲线分别遵循立方规律和抛物线规律,这归因于锆合金氧化速率由氧离子扩散通过ZrO2晶格决定[31,32]。在1000℃蒸汽环境中1800 s后Zr-2合金基体加速氧化,动力学曲线由抛物线转变为近似直线(图3b和表1),这称为分离氧化[29,33]。但是,纯锆基体在1000℃蒸汽氧化3600 s后没有观察到分离氧化,因为锆合金中的Sn元素的添加加速了锆基体分离氧化[34,35]。在900、1000及1100℃蒸汽氧化3600 s后,Zr-2合金基体的增重分别为4.46、14.29 和25.32 mg/cm2。Cathcart-Pawel关系通常用于评估1000~1500℃温度范围内锆合金氧化层的生长速率[31,36],Cathcart-Pawel关系为
式中(ΔW/A)CP为单位面积增重(mg/cm2),T为温度(K),t为氧化时间(s)。根据Cathcart-Pawel关系,在900、1000及1100℃蒸汽氧化3600 s后锆合金试样氧化增重预测值分别为6.87、13.46和23.92 mg/cm2,表明本文Zr-2合金的氧化增重值与Cathcart-Pawel关系的预测值基本一致。
2.3 蒸汽氧化后氧化层组织和成分分布
图4
图4

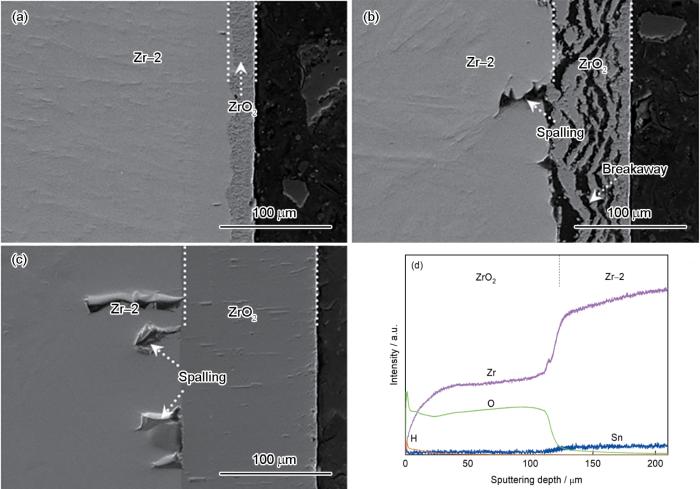

Zr-2合金在不同温度蒸汽中氧化3600 s后截面的结构和GDOES成分深度分布
Fig.4
Cross-sectional microstructures and GDOES composition depth profiles of bare Zr-2 alloy after 3600 s steam oxida-tion at different temperatures (a) 900℃, (b) 1000℃, (c, d) 1100℃
图5
图5

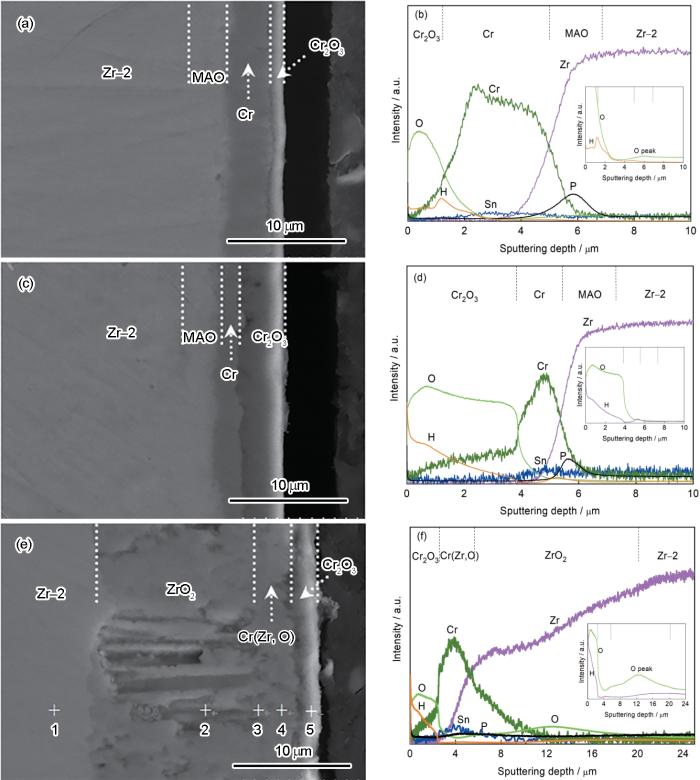

ZrO2/Cr复合膜在不同温度蒸汽中氧化3600 s后的截面结构和GDOES成分深度分布
Fig.5
Cross-sectional microstructures and GDOES composition depth profiles of ZrO2/Cr-coated Zr-2 alloy after 3600 s steam oxidation at different temperatures (a, b) 900℃, (c, d) 1000℃, (e, f) 1100℃
在1100℃蒸汽氧化3600 s后,在Zr-2合金表面观察到三层结构的氧化层(见图5e)。图5f表明,O信号的相对强度随着溅射深度迅速下降,随后在2.6 μm到5.6 μm深度范围内只有较低的O信号。随着溅射深度达5.6 μm,O信号强度显著增强。EDS成分分析结果表明,外部厚约2.6 μm的氧化膜主要由Cr2O3组成(表2点5)。在Cr2O3膜下方为厚约3 μm的金属Cr层和ZrO2(表2点4)。在氧化初期Cr涂层表面生成一层均匀致密的Cr2O3膜,Cr层消耗后Cr2O3/Zr界面上部分Cr2O3被Zr还原成金属Cr,锆合金基体氧化生成ZrO2[25]。因此,随着蒸汽温度从900℃提高到1000℃,Cr涂层进一步被氧化,Cr2O3膜变厚。但是蒸汽温度上升至1100℃后Cr2O3膜明显变薄,因为部分Cr2O3膜被Zr还原,而还原生成的Cr层固溶了较多的O和Zr原子。此外,还原Cr层中存在的ZrO2氧化物成为氧原子向内扩散提供快速扩散通道,加速了锆合金基体氧化[37,38]。最终还原Cr层下方锆基体氧化生成厚约14.1 μm的ZrO2内层膜(表2中的点2),仅为Zr-2合金基体1100℃蒸汽氧化后ZrO2厚度的1/9(图4c)。这表明,ZrO2/Cr复合膜大幅度阻止氧扩散,降低了锆合金基体的氧化速率。
表2 ZrO2/Cr复合膜试样1100℃蒸汽氧化3600 s后的截面成分
Table 2
Element | Point 1 | Point 2 | Point 3 | Point 4 | Point 5 |
---|---|---|---|---|---|
Zr | 70.99 | 35.97 | 37.81 | 15.14 | 2.38 |
Sn | 0.63 | 0.35 | 0.54 | 0.19 | 0.10 |
Cr | 0.15 | 0.28 | 7.22 | 53.58 | 21.82 |
O | 28.24 | 63.40 | 54.43 | 31.09 | 75.70 |
从图5a~d还可见,在900和1000℃蒸汽氧化后MAO膜中间层的原始微观结构发生了变化,H、O信号强度明显降低,甚至消失(图2a和b)。EDS成分分析表明,在900℃氧化3600 s后MAO膜中间层成分为(原子分数)67.20% Zr、23.03% O、9.26% Cr和0.51% Sn,对应Zr3O和少量的Cr(图5a)。这表明,在高温蒸汽氧化过程中MAO膜中间层部分氧原子扩散进入锆基体,ZrO2转变为Zr3O相。同样,Zhang等[39]报道,Zr-Sn-Nb合金表面ZrO2膜在温度高于400℃的管式炉中真空热处理后,氧化膜逐渐溶解于锆基体,ZrO2转变成亚稳态的Zr-O相,以及Zr2O和Zr3O相。Hayward等[40]也观察到,ZrO2在熔融的Zr-4合金中被溶解:
式中ZrO2-x 可以是有序结构的Zr3O相。随着蒸汽温度的升高MAO膜中氧原子向外扩散更快,但是P元素仍富集在MAO膜初始区域,直到1100℃仍然存在微弱的P峰(图5f)。
图6给出了Zr-2合金及ZrO2/Cr复合膜在不同温度蒸汽氧化3600 s后的金相组织照片。如图6a所示,Zr-2合金基体经900℃蒸汽氧化后截面组织从外到内为ZrO2层、氧稳定的α-Zr(O)层、再结晶α-Zr和前β-Zr相的混合区,ZrO2层和α-Zr(O)层厚度分别为23.7和32.7 μm。根据Zr-O相图[45],随着锆基体中氧含量的变化Zr-Sn合金的(α-Zr和β-Zr)两相区一般在810~970℃。因此,在900℃蒸汽氧化后,α-Zr(O)层下方未被氧化的锆合金基体由再结晶α-Zr和前β-Zr相组成。在1000℃下ZrO2层和α-Zr(O)层逐渐增厚,厚度分别为73.5和66.7 μm (图6c)。α-Zr(O)层下方的微观组织转变为“平行板结构”的魏氏体α-Zr结构,称为前β-Zr区[31]。当蒸汽温度上升至1100℃,ZrO2层和α-Zr(O)层厚度快速增加至127.3和105.1 μm (图6e)。图6c和6e还表明,Zr-2合金基体在1000和1100℃蒸汽氧化后α-Zr(O)层区域发生严重的剥落。在高温蒸汽环境大量的氧溶解于锆合金基体,韧性β-Zr相转变为脆性α-Zr(O)相[46]。在截面样品切割抛光过程中,α-Zr(O)层发生局部剥落形成剥落区域。
图6
图6

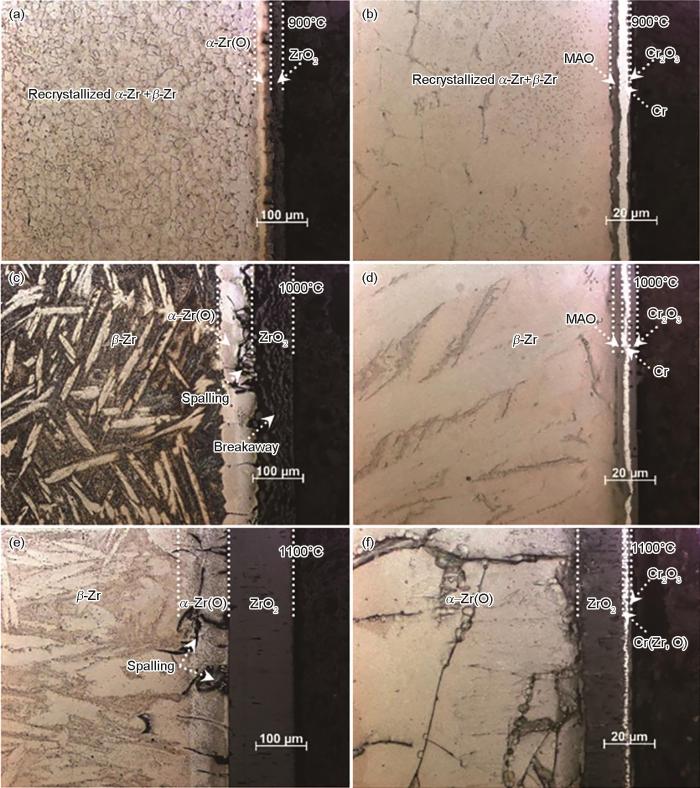

Zr-2合金和ZrO2/Cr复合膜在不同温度蒸汽中氧化3600 s后截面的金相组织
Fig.6
OM cross-sectional images of bare and ZrO2/Cr-coated Zr-2 alloy after 3600 s steam oxidation at different tempera-tures (a, c, e) bare Zr-2 alloy, (b, d, f) ZrO2/Cr composite coating
2.4 蒸汽氧化后氧化层的相组成
图7
图7

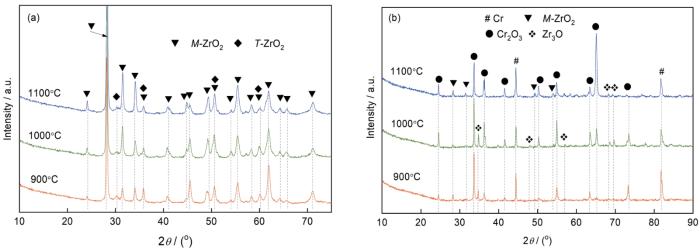

Zr-2合金和ZrO2/Cr复合膜在不同温度的蒸汽中氧化3600 s后的XRD谱
Fig.7
XRD patterns of bare and ZrO2/Cr-coated Zr-2 alloy after 3600 s steam oxidation at different temperatures (a) bare Zr-2 alloy, (b) ZrO2/Cr composite coating
图7b表明,ZrO2/Cr复合膜在900℃蒸汽氧化后探测到来自Cr2O3和Cr相衍射峰,与图5a和6b中的截面组织相一致。在1000℃表面Cr2O3膜进一步生长,残余Cr层的厚度减小,Cr2O3相的衍射峰强度增强,Cr相的衍射峰强度减弱。当蒸汽温度达到1100℃时,除2θ (65.104°)处Cr2O3相的衍射峰,其余Cr2O3相衍射强度减弱,Cr峰相对强度增强,明显比1000℃时的高,与金属Cr层的氧化还原过程有关[25,26]。同时还探测到M-ZrO2相,表明氧已扩散进入锆合金基体形成ZrO2相。因此,在1100℃氧化3600 s后较薄的Cr2O3膜覆盖在还原Cr层表面,同时Zr-2合金基体氧化生成厚约14.1 μm的ZrO2内层膜(图5e和6f)。在图7b中还可见,在900和1000℃蒸汽氧化3600 s后MAO膜中间层的M-ZrO2相衍射峰消失,在2θ为36.265°、47.584°及56.587°处出现Zr3O相衍射峰,表明在蒸汽氧化过程中发生了M-ZrO2向Zr3O的相转变。
3 讨论
锆的蒸汽氧化速率与氧在β-Zr、ZrO2和α-Zr(O)中的扩散系数密切相关[34],即
式中
图8
式中

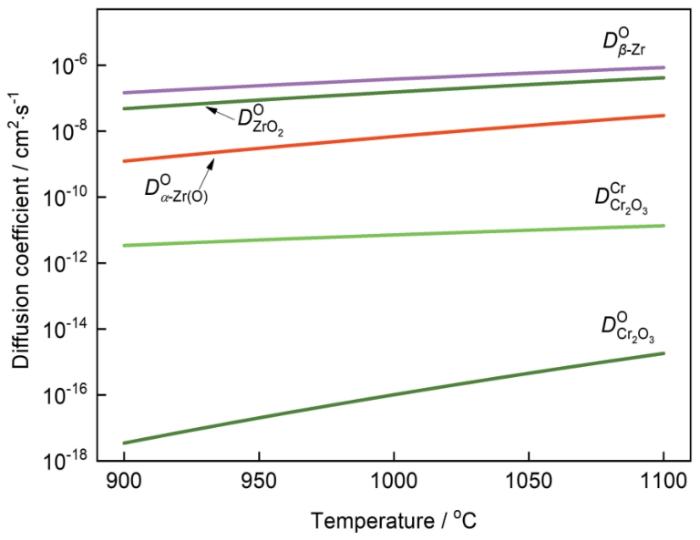

图8表明,在900~1100℃范围内氧在Cr2O3中的扩散系数(
4 结论
(1) 在900、1000和1100℃蒸汽中氧化3600 s后ZrO2/Cr复合膜单位面积的氧化增重约为Zr-2合金基体的3/8、1/4和2/5,表明Zr-2合金的抗蒸汽氧化性能提高了。
(2) 在高温蒸汽环境中,在ZrO2/Cr复合膜表面氧化生成的致密Cr2O3膜能抑制氧向锆合金基体内扩散、降低氧化速率和阻止锆试样在1000℃蒸汽环境中出现分离氧化。
(3) ZrO2/Cr复合膜表面Cr层完全消耗前,Cr涂层的氧化与Cr、O在Cr2O3中的扩散系数密切相关,氧化速率主要取决于铬向外扩散,而不是氧向内扩散。
(4) 在900~1100℃的蒸汽中氧化后氢主要富集在Cr2O3层中,几乎没有扩散到ZrO2内层膜和Zr合金基体中,表明MAO膜中间层能抑制氢渗透进入锆基体。
