基于胶体微球自组装光子晶体的结构生色
1.
2.
3.
Structural Coloration of Photonic Crystals Based On Self-assembly of Colloid Microspheres
1.
2.
3.
通讯作者: 刘国金,guojin900618@163.com,研究方向为光子晶体
收稿日期: 2020-05-22 修回日期: 2020-10-28 网络出版日期: 2021-04-09
基金资助: |
|
Corresponding authors: LIU Guojin, Tel:
Received: 2020-05-22 Revised: 2020-10-28 Online: 2021-04-09
作者简介 About authors
李壮,男,1996年生,硕士生
综述了近年来基于胶体微球自组装光子晶体结构生色的研究进展。先简要介绍了光子晶体和结构生色理论,然后阐述了以胶体微球为基本结构基元构筑光子晶体的自组装方法,探讨了光子晶体的结构色效果的表征方式和稳固性增强方法,最后总结了用胶体微球自组装法制备光子晶体的困难并展望了发展方向。
关键词:
This paper reviewed the recent progress of structural coloration of photonic crystals based on self-assembly of colloid microspheres. Firstly, photonic crystals and the corresponding structural coloration theory were simply introduced, then the different self-assembly methods of constructing photonic crystals with colloid microspheres as basic structural elements were presented. Characterization methods for the structural coloration and the stability enhancement of photonic crystals are further discussed, finally the difficulties encountered in the preparation of photonic crystals via self-assembly of colloid microspheres, and the future development direction were also mentioned.
Keywords:
本文引用格式
李壮, 须秋洁, 刘国金, 张耘箫, 周岚, 邵建中.
LI Zhuang, XU Qiujie, LIU Guojin, ZHANG Yunxiao, ZHOU Lan, SHAO Jianzhong.
1 光子晶体及其结构生色基本理论
图1
图1

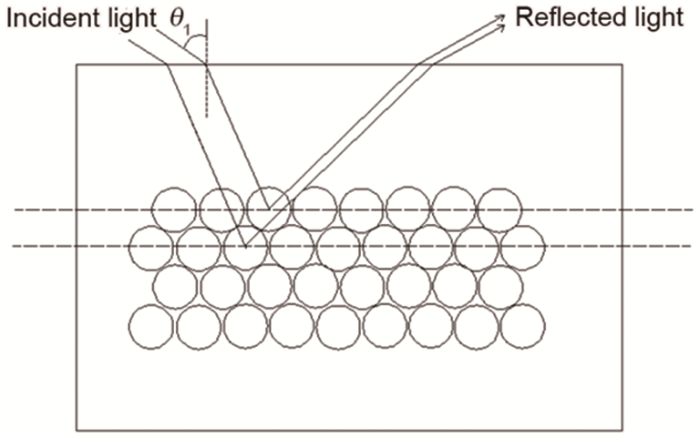

光子晶体结构生色示意图
Fig.1
Schematic diagram of photonic crystal structure color development
用修正后的经典布拉格方程能诠释结构色的产生机理和影响因素。修正后的经典布拉格方程为
其中λ为波长,d为晶格间距,m为衍射级,ηs为折光指数,θ1为入射角。由此可知,光子晶体生色结构的结构色效果与晶格间距、衍射级、折光指数和入射角等因素有关。在其他因素不变的条件下,光子晶体生色结构的晶格间距增大时波长随之增大,结构色将红移。除了改变晶格间距,还可改变入射角使光子晶体生色结构的结构色变化。在其他因素不变的情况下,随着入射角的增大波长随之减小,使结构色蓝移。
2 用胶体微球自组装法制备光子晶体生色结构的研究进展
自组装,是通过某些非化学键作用使基本结构单元自发组装构造成更高级结构;胶体微球自组装法,则是以胶体微球作为结构基元通过有序排列组装成胶体晶体。胶体微球自组装法可依据微球种类、自组装驱动力以及基材在自组装液中的放置方式分类。按照基材的放置方式可将胶体微球自组装法分为浸渍法自组装和印花法自组装。浸渍法,是将承载光子晶体的基材浸没在胶体微球自组装液中;印花法,不用将基材在胶体微球自组装液中浸渍。
2.1 浸渍法自组装
2.1.1 重力沉降法
图2
图2

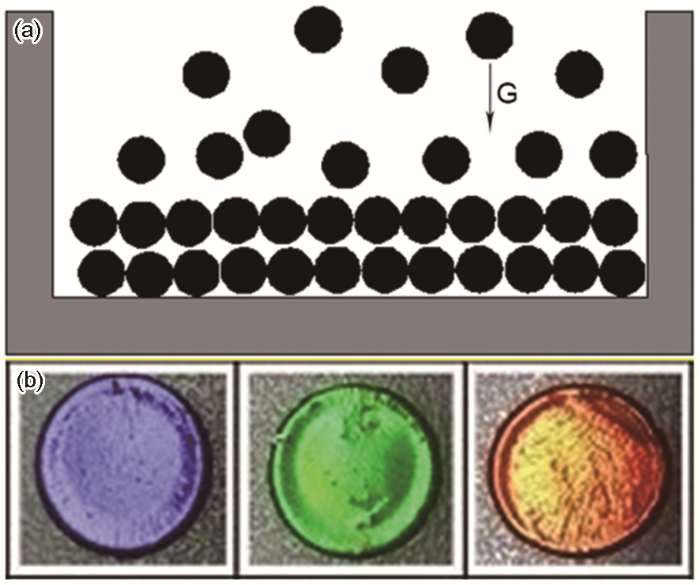

重力沉降法示意图和光子晶体彩色膜的照片
Fig.2
Schematic diagram of gravity sedimentation (a) and photo of photonic crystal color film (b)
但是,这种方法耗时长、制备效率低,且只靠微球自身的重力难以制备出大面积的规整光子晶体,不能满足工业化生产的要求。
2.1.2 垂直沉积法
图3
图3

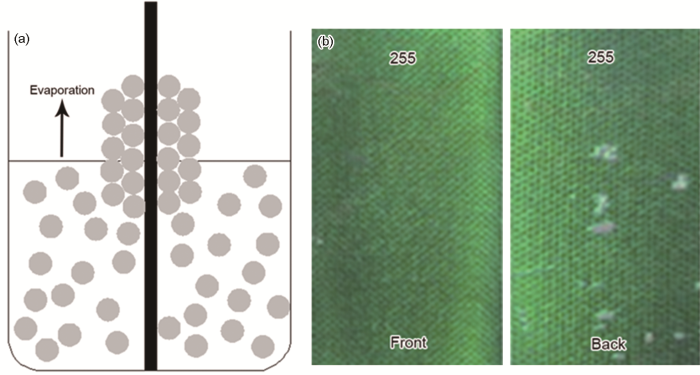

垂直沉积法示意图和基材双面着色的照片
Fig.3
Schematic diagram of vertical deposition method (a) and photo of double-sided coloring of the substrate (b)
2.1.3 离心沉积法
图4
图4

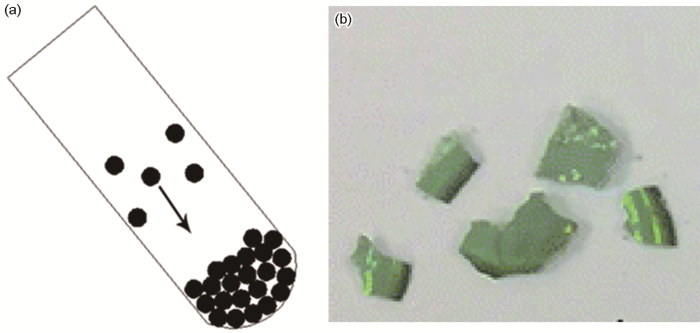

离心沉积法示意图和光子晶体片的照片
Fig.4
Schematic diagram of centrifugal deposition method (a) and photo of photonic crystal sheet (b)
但是,离心沉积法中的离心力较难控制,过大的离心力使胶体微球的沉积过快,不能控制光子晶体表面的结构生长取向和生长层数,使光子晶体产生很多结构缺陷,使结构色效果不佳。因此,如何在离心速率与自组装之间取得平衡,是用离心沉积法制备光子晶体生色结构的研究重点。
2.1.4 电泳沉积法
图5
图5

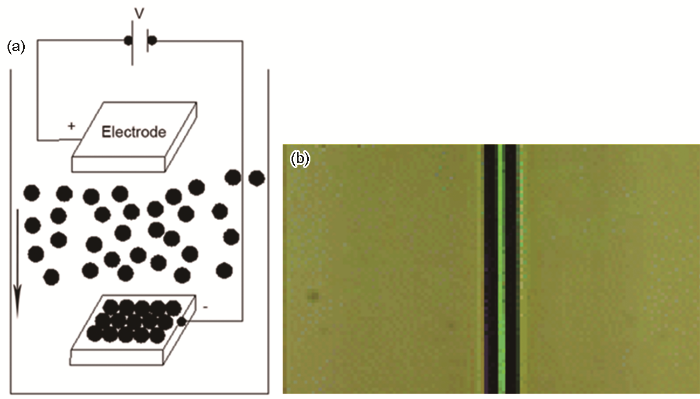

电泳沉积法示意图和结构色纤维的照片
Fig.5
Schematic diagram of electrophoretic deposition method (a) and photo of structural color fiber (b)
电泳沉积法也有不足之处,要求胶体微球的电荷密度相同,还要严格控制分散介质中胶体微球的体积分数。只有使用相同电荷密度和体积分数的胶体微球材料,才能用电泳沉积法制备光子晶体。
2.2 印花法
2.2.1 丝网印花法
图6
图6

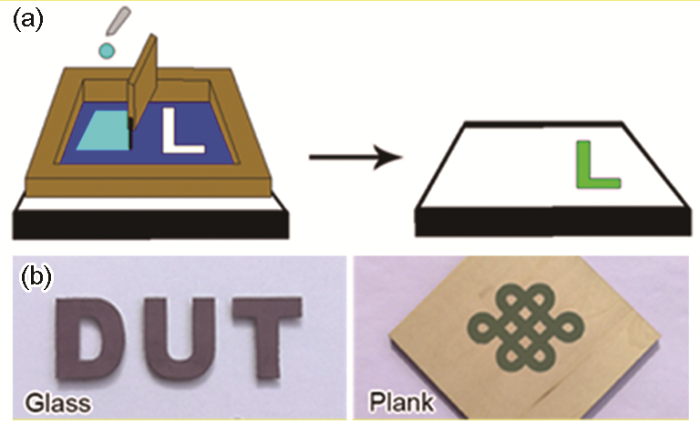

丝网印花法示意图和光子晶体图案的照片
Fig.6
Schematic diagram of screen printing (a) and photo of photonic crystal pattern (b)
但是,在传统的手工台板丝网印花过程中不易精确控制刮板、印刷膏体、印花操作和后处理,基材上的光子晶体图案很容易出现印花疵病,影响光子晶体结构色的效果。为了解决这些问题,在传统手工台板丝网印花装置的基础上逐步发展出性能更优良的自动台板丝网印花装置,用机电控制系统精确控制网框安装、台板定位、套色、刮印和烘干,一切皆自动完成、实现生产的自动化而避免了人工操作可能产生的失误。自动台板丝网印花装置既提升了丝网印花的印花效率,还能制备出高质量的光子晶体图案。
2.2.2 数码喷印法
图7
图7

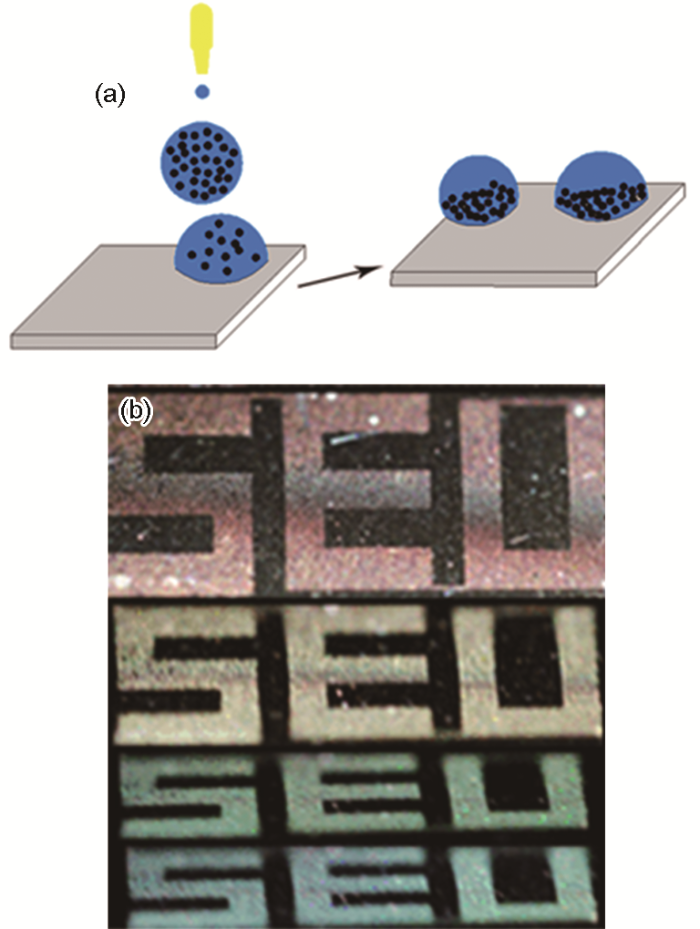

数码喷印法示意图和光子晶体图案的照片
Fig.7
Schematic diagram of digital printing method (a) and photo of photonic crystal pattern (b)
图8
图8

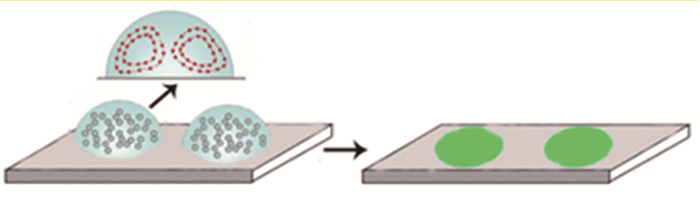

“咖啡环”效应抑制过程的示意图[50]
Fig.8
Schematic diagram of the inhibition process of the "coffee ring" effect
同时,数码喷印法还受数码喷头与胶体微球间适配性的限制。为了实现工业化应用,还需要进一步深入研究。
3 光子晶体生色结构的性能
3.1 结构色效果
3.1.1 色彩鲜艳度
光子晶体的一大重要特征是产生绚丽多彩的结构色,而结构色的色彩鲜艳度又反映了结构色效果。因此,检测结构色的色彩鲜艳度可表征结构色效果。最直观的表征手段是使用数码相机和显微镜等进行观测,判定观测结果以定性表征结构色的鲜艳程度。为了更精准的量化色彩鲜艳度,可使用颜色分析设备进行定量表征。例如,使用电子测色配色仪测试光子晶体的表观得色深度、L*a*b*值和反射率等数据;还可测定光子晶体的反射率或透过率曲线,分析曲线峰面积、峰宽和峰高等指标数据反映结构色的色彩鲜艳度。
3.1.2 虹彩效应
与传统的色素色相比,由胶体微球自组装成的规整光子晶体呈现的结构色具有方向性,即从不同角度可看到不同的结构色彩。这种现象,称为虹彩效应。
使用显微镜可从不同角度观察光子晶体的虹彩效应,还可用数码相机在不同角度拍摄光子晶体的光学图片。此外,使用多角度分光光度仪从不同光源和不同角度定性和定量分析光子晶体的虹彩,也是一种重要的表征手段。使用多角度分光光度仪测量光子晶体的示意图,在图9中给出。多角度分光光度仪有两个光源,第一个光源设定在45°处,有六个不同的观察角度,依次为-15°,15°,25°,45°,75°和110°,分别被标记为45° as -15°,45° as 15°,45° as 25°,45° as 45°,45° as 75°,45° as 110°;在第二测定光源的15°处有两个不同的观察角度,分别记作15° as -15°和15° as 15°。
图9
图9

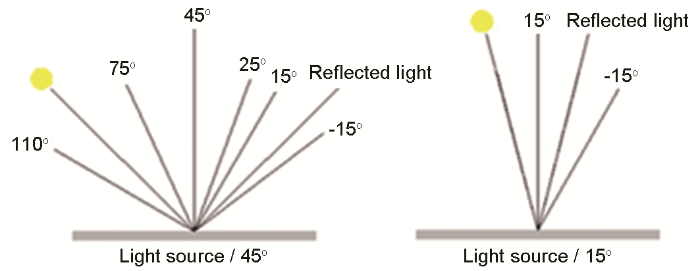

多角度分光光度仪测量光子晶体的示意图
Fig.9
Schematic diagram of measuring photonic crystal by multi-angle spectrophotometer
使用黑色分散染料/聚(苯乙烯-丙烯酸丁酯-甲基丙烯酸)胶体微球为基本结构基元配制胶体墨水,再使用数码喷印法将胶体墨水喷射到织物基材表面,可构筑具有明显虹彩效应的光子晶体图案[51]。使用MA98型多角度分光光度仪按规定的测试标准对光子晶体的色彩效果进行定性和定量分析,发现照射光源在45o时随着观察角度由-15o增加到45o光子晶体图案结构色出现红移,而光子晶体结构色对应的波长变大,即向长波长方向偏移;随着观察角度由75o增加到110o光子晶体图案结构色出现蓝移,而光子晶体结构色对应的波长变小,即向短波长方向偏移;照射光源在15o时,随着观察角度由-15o增大到15o光子晶体图案结构色出现红移,而光子晶体结构色对应的波长变大,即向长波长方向偏移。这些变化证明,这种光子晶体生色结构具有明显的虹彩效应。
图10
图10

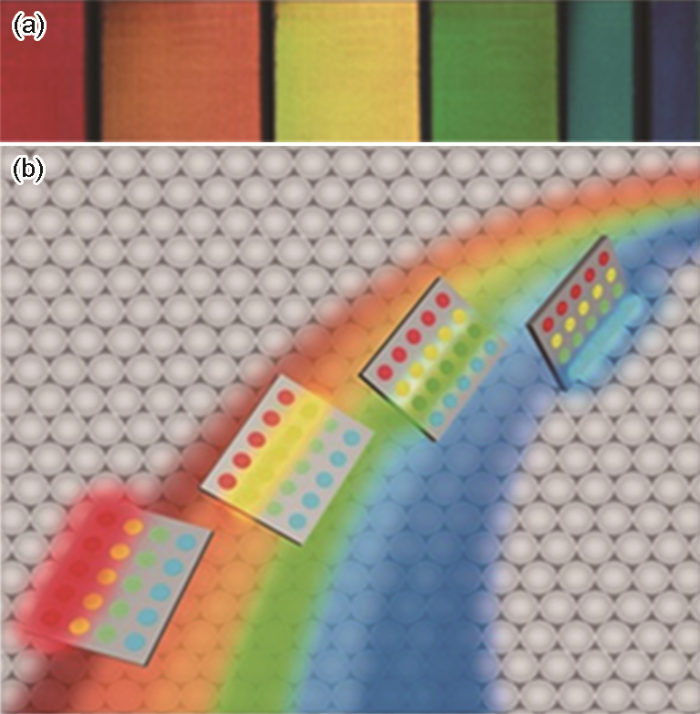

不同观察角度下光子晶体膜的照片和光子晶体芯片的原理图[52]
Fig.10
Photos of photonic crystal films (a) and schematic diagrams of photonic crystal chips under different observation angles (b)
3.2 光子晶体生色结构的稳固性
结构色是因光子晶体生色结构与光的相互作用而产生的视觉效应,光子晶体生色结构的稳固性直接决定结构色的耐久性。因此,构筑高稳固性光子晶体生色结构是实现仿生结构色实际应用的关键。此外,结构色制品经常在恶劣的环境(如酸、碱、油等化学物质或高温)中使用,因此必须考虑光子晶体生色结构的稳固性。目前,提高光子晶体生色结构稳固性的方法,有填充法和粘合涂层法。
3.2.1 填充法
填充法,是提高光子晶体生色结构稳固性的常用方法。将粘性物质浇筑进光子晶体生色结构内,通过加强相邻微球间的粘接提高光子晶体生色结构的稳固性。但是,这种“后填充”方式的浇筑不可控。浇筑液浓度低则光子晶体生色结构稳固性的提高有限,而浇筑液浓度高或粘度过大则因浇筑液和胶体微球的折光指数差异性较小使结构色消减甚至消失。同时,在胶体微球自组装液中加入具有粘合作用的物质,可实现微球的自组装并增强相邻胶体微球间的连接。
Li等[53]将大尺寸的有机改性二氧化硅胶体微球、小尺寸的聚丙烯酸丁酯共聚物与乙醇共混制备胶体墨水,然后用喷涂装置将胶体墨水喷射到基材上。这样制备出的光子晶体生色结构,多次折叠和水洗后表现出良好的稳固性。结构中小尺寸的聚丙烯酸丁酯共聚物像“桥梁”一样连接大尺寸二氧化硅胶体微球间的空隙,实现了相邻微球的粘接。但是,这种“同步填充”对自组装条件的要求极为严苛。粘合物质很容易扰动胶体微球的自组装行为,不易形成结构规整的光子晶体。在总体上,填充法是一种提高光子晶体生色结构稳固性较为有效的方法,但是实施条件严苛。克服实施条件严苛的难题,是用填充法制备高稳固性光子晶体生色结构的重要研究方向。
3.2.2 粘合涂层法
与加强相邻胶体微球间的粘接提高光子晶体生色结构稳固性的填充法显著不同,粘合涂层法在基材和光子晶体层之间制备一层具有粘性的涂层以加强基材与光子晶体层间的粘接,进而提高光子晶体生色结构稳固性。

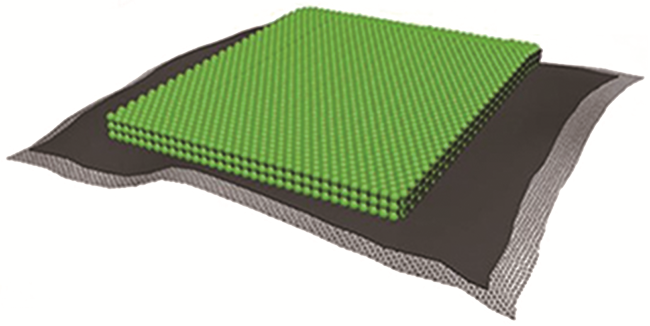

图11
4 总结和展望
几十年来,人们对光子晶体生色结构生色理论的研究已较为深入,光子晶体生色结构在光学电器、传感器和太阳能电池等方面的应用也取得了长足进展。胶体微球自组装方法工艺简便、成本低廉和工艺设备要求低,成为制备光子晶体的重要方法。
与浸渍法相比,印花法更接近工业化应用,其中的数码印花法更是一种适合批量化和个性化加工的技术手段。未来若能研制和开发出和胶体微球粒径较为配套的数码喷头,有望大力推动光子晶体结构生色的实际应用。
光子晶体生色结构的稳固性是制约其实际应用的关键,尤其是在对色彩鲜艳度要求很高的纺织服装领域,光子晶体生色结构的稳固性更为重要。填充法和粘合涂层法是提高光子晶体生色结构稳固性较为有效的方法。与填充法相比,粘合涂层法更有工业化应用前景。但是,找到可用于制备粘合涂层的粘合物质是研究的重点,也是光子晶体结构生色实际应用的瓶颈。随着相关物理、化学等学科领域基础研究的不断深入以及新技术、新材料的不断发展,将很快实现基于胶体微球自组装的光子晶体结构生色的实际应用。
