, 汪奔
, WANG Ben
研究了50CrVA高强弹簧钢在不同热处理状态下(淬火+中温回火和退火)的超高周疲劳破坏行为及其裂纹萌生机理。结果表明, 50CrVA高强弹簧钢在107~109循环周次内发生疲劳破坏, 两种热处理状态的S-N曲线下降形态不同, 均未出现疲劳极限。热处理工艺改变50CrVA的微观组织, 从而影响超高周疲劳阶段(寿命>107周次)的疲劳破坏损伤机制: 经淬火+中温回火处理材料破坏多起源于内部夹杂物, 夹杂物周围存在的应力场与溶质原子发生弹性交互作用, 吸引间隙原子向其周边扩散、富集, 使间隙原子富集区材料性能下降, 导致裂纹在内部夹杂物处萌生; 退火热处理后材料微观组织对间隙原子向材料内部夹杂物扩散起到阻碍作用, 所以超高周疲劳裂纹易于在材料表面萌生。
Ultrahigh cycle fatigue behavior of 50CrVA spring steel, which was treated successively byquenched, tempered (QT) and annealed (AD) processes, was investigated by ultrasonic fatigue testingtechnique. The results showed that in ultra-long life regimes (107~109 cycles) the fatigue damage occurred, and the S-N curves displayed different forms. Different heat treatment process could induce different microstructure of the steel; there with regulate the relevant ultrahigh cycle fatigue damage mechanism. In QT state, fatigue cracks generally originated from inner oxide inclusions. It was probably due to that elastic interaction between microcrack tip stresses and interstitial atoms, which enable carbon atoms to be enriched around the particles, causing the degradation of performance of the region rich in carbon and initiation of fatigue cracks. In AD state, the enrichment of interstitial atoms was difficult due to that the special microstructure inhibited the diffusion of atoms approaching to impurity particles so that the cracks were prone to initiate from the steel surface.
转向架轴箱弹簧是动车组运行中起承载、缓冲、转向等作用的关键部件, 其材料的选用对列车的安全运行至关重要。目前, CRH380D动车组轴箱弹簧选用的材料为51CrV4弹簧钢, 该材料全部从德国进口, 国内牌号为50CrVA高强弹簧钢。列车在高速线路区段, 弹簧主要受低幅值高频次的动态荷载影响[1], 50CrVA弹簧钢的使用寿命一般在107~109周次范围内。大量研究表明[2-6]: 高强钢在1010周次范围内仍然会发生疲劳破坏。现行的相关标准并没有对高铁用材料的超高周疲劳性能提出要求, 因此研究50CrVA弹簧钢的超高周疲劳性能, 对列车构件的疲劳寿命预测、高铁用材料的国产化等都具有非常重要的意义。
学者普遍认为解释材料超高周疲劳破坏行为的关键是明确疲劳裂纹内部萌生源区中形貌粗糙区域(Granular bright facet, 以下简称GBF)的形成机理。Murakami等[7]通过二次粒子质谱(SIMS)技术观察到在夹杂物及其周围分布有H元素, 认为在材料冶炼过程中H被内部夹杂物捕获, GBF的形成是H与应力共同作用的结果。李永德等[8]在SUJ2轴承钢中充入不同浓度的H, 发现在相同荷载作用下H的浓度与GBF的尺寸呈负相关。Shiozawa等[9]研究发现在GBF区中存在着碳化物的富集, 应力集中与荷载共同作用使得材料内部夹杂物周围的碳化物颗粒发生剥离, 形成了微小的裂纹。在低应力长时间作用下微小裂纹相互合并连接, 围绕夹杂物周围扩展, 最终形成GBF粗糙的断口形貌。但是, 该理论并没有对碳化物颗粒的生成原理做出解释。鲁连涛等[10]利用电子探针(EPMA)测量了夹杂物周围碳元素发现: 碳富集范围与GBF区面积相吻合, 而无GBF区的夹杂物周围仅有少量的碳元素存在。Sakai[11]认为在循环荷载作用下, 材料内部夹杂物周围形成一层“细晶薄层”, 细晶层与材料基体晶粒之间由于应力的作用沿其交界面发生分离致使初始裂纹生成, 并在交界面中合并、扩展, 最终生成GBF。张永健等[12]通过不同的热处理方式细化了高强度钢的晶粒尺寸, 从而提高了材料的超高周疲劳性能。李永德等[13]通过对SUJ2轴承钢的研究发现GBF的尺寸与夹杂物的尺寸无关, 但在低周疲劳阶段, 疲劳寿命与夹杂物尺寸成反比例关系。
目前对GBF形成机理尚未形成共识, 但上述研究成果表明材料超高周疲劳裂纹内部萌生不是单纯的力学问题, 王弘[14]提出GBF区内H、C等元素的富集应该是一个伴随裂纹内部萌生长大的动态过程。在荷载作用下夹杂物或内部缺陷周围存在的应力场会对H、C、O等间隙原子产生吸引, 造成夹杂物及其周围非金属元素的富集, 最终形成GBF区。目前利用间隙原子扩散理论解释超高周疲劳裂纹内部萌生机制的研究还未见报道。
为了明确间隙原子扩散诱导材料超高周疲劳裂纹内部萌生的机理, 本文选用淬火+中温回火和退火两种热处理方式的50CrVA高强弹簧钢进行超高周疲劳实验。通过改变热处理工艺控制材料的显微组织, 探究间隙原子扩散对超高周疲劳性能的影响规律。
50CrVA高强弹簧钢化学成分(质量分数, %)为C 0.51, Mn 0.95, Si 0.30, Cr 1.10, V 0.13, S≤0.015, P≤0.015, Al 0.02。实验材料取自
试样总数70个, 首先加工成超声疲劳实验试样并预留热处理磨量。第一组试样40个, 以下简称QT(Quenched and tempered), 根据GB/T 1222-2007标准进行热处理, 即对棒材进行860oC/4 h的退火处理, 再进行830oC/1 h真空油冷淬火+480oC/3 h中温回火热处理。第二组试样30个, 以下简称AD(Annealed), 只进行860oC/4 h的退火处理。热处理后所有试样经纵向打磨抛光, 表面粗糙度要求到达

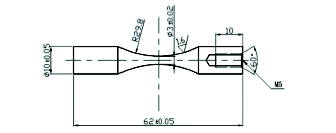

图1 超声疲劳实验所用样品尺寸
Fig.1 Dimensionof specimens tested by ultrasonic fatigue system (Unit: mm)
疲劳实验是在美国BRANSON 200bdc超声疲劳试验机上进行的, 加载频率为20 kHz, 荷载比
QT组试样的微观组织为典型回火屈氏体组织, 如
图2 50CrVA弹簧钢不同热处理状态下的微观组织光学显微镜照片
Fig.2 Optical microscope (OM) images of 50CrVA spring steeltreated by (a) quenched and tempered (QT) and (b) annealed (AD) process
表1 50CrVA弹簧钢热处理后样品的拉伸性能
Table 1 Mechanical properties of 50CrVA spring steel specimens after heating treatment

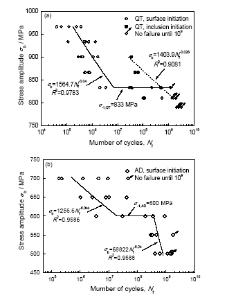

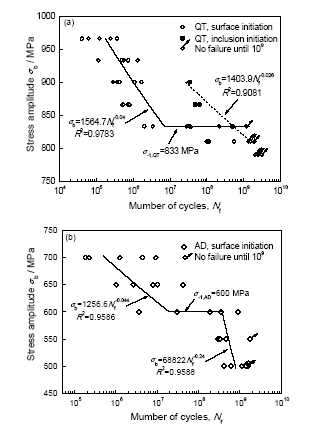

两种热处理状态下材料的应力-寿命(S-N)曲线如
通过扫描电镜对疲劳试样断口进行观察发现: QT状态下, 超高周疲劳阶段大部分试样疲劳断裂起源于内部夹杂物。
AD状态下疲劳裂纹全为表面或次表面萌生, 多发生于组织缺陷或材料中两相的交界处。
图4 不同热处理状态下50CrVA弹簧钢超高周疲劳断口扫描电镜观察
Fig.4
Scanning electron microscope (SEM) micrographs of fracture surface of 50CrVA spring steel tested by ultrahigh cycle fatigue after heating treatment: (a) QT,
在超高周疲劳阶段, QT状态下疲劳裂纹倾向于在试样内部非金属夹杂处萌生。从
表2 GBF区内外的碳含量对比(质量分数, %)
Table2 Carbon content of internal and external regions of GBF (%, mass fraction)
虽然退火态材料在超高周疲劳范围内发生了疲劳断裂, 但是裂纹全在表面或次表面萌生。在退火组织中存在着粗大的珠光体团, 因其是硬脆相与铁素体的机械混合, 可以被视为分布在基体中较大的组织缺陷。位错会在珠光体团内部或与铁素体的交界处形成驻留滑移带从而引发疲劳裂纹的萌生。根据杨振国等[20]给出的超高周疲劳临界夹杂物尺寸计算公式:
式中
另一方面, 经过退火处理后, 碳主要存于粗大的片层状渗碳体构成的珠光体中, 铁素体基体中平均碳含量仅占0.02%质量分数, 碳原子以间隙形式存在的可能性降低, 使得间隙原子达到能够促使微裂纹长大的富集浓度需要更长时间。退火态组织近于平衡转变产物, 与淬火态相比材料内部位错密度大幅降低, 间隙原子通过位错扩散的通道少, 也对碳原子扩散造成一定的阻碍, 导致退火态材料内部裂纹萌生长大的几率降低, 形成可扩展的内部宏观裂纹需要时间更长。所以, 超高周疲劳阶段破坏易起源于材料表面或次表面。
1. 淬火+中温回火(QT)样品的显微结构为典型的回火屈氏体组织, 碳化物尺寸约为0.5
2.两种热处理状态下的材料在109循环周次内都发生了疲劳破坏, 均未观察到疲劳极限。但疲劳损伤机制不同, 淬火+中温回火状态裂纹起源于内部夹杂物, 而退火状态裂纹起源于材料表面或次表面。
3.在裂纹内部萌生样品中观察到的碳浓度变化规律证明GBF区碳元素的富集是间隙碳原子逐步向内部夹杂物扩散造成的。间隙原子富集引起材料性能退化, 诱导超高周疲劳阶段裂纹在材料内部萌生。经退火热处理后的材料微观组织结构对间隙原子向材料内部夹杂物的扩散、富集起到阻碍作用, 使得超高周疲劳阶段内部裂纹萌生几率低于表面, 因此裂纹易于在表面和次表面萌生。
