*Supported by National Natural Science Foundation of China Nos. 51571052&51371044, Fundamental Research Funds for the Central Universities No. L1502027, Nature Science Foundation of Liaoning Province No. 2014020034.;
The effect of strain rate on the deformational behavior of laser welded joint of superalloy GH4169 was investigated, and the mechanism for strain rate sensitivity of the tensile deformation was discussed. The results show that the welded joints were more sensitive to the strain rate compared to the base material. The strain rate had little influence on the strength of welded joints at the strain rate range from 10-3 s-1 to 10-1 s-1. When the strain rate was higher than 100 s - 1, the yield strength and ultimate tensile strength of the welded joint increased with increasing strain rate, at the same time the yield strength had a much obvious increase. On the other hand, the plasticity of the welded joint tended to decrease with the increasing strain rate, however it increased while the strain rate changed from 101 s-1 to 102 s-1 and then reached the peak value of ductility by the strain rate of 102 s-1. The tensile failure location changed from the base material via the softened heat-affected zone to near the fusion zone with the increase of the strain rate. The strain rate sensitivity of deformation and fracture behavior of the welded joint under high strain rate was mainly caused by the difference of strain rate sensitivity of microstructures at different positions in the welded joint.
实验用GH4169合金的化学成分(质量分数, %)为: C 0.03, Fe 18.65, Cr 19.17, Mo 2.96, Al 0.52, Ti 1.03, Nb 5.05, Mn 0.011, P 0.002, S 0.002, B 0.003, Ni余量。采用真空感应(VIM)+真空电弧重熔(VAR)双联工艺冶炼出直径为508 mm的合金锭, 再经1160℃和1190℃两段式高温均匀化退火消除Laves相和Nb偏析后, 多火次锻造成截面为70 mm×210 mm的扁坯, 再精轧成24 mm×210 mm的扁坯供轧制板材成品。板材成品经多次冷轧和去应力退火轧, 制成厚度为1.4 mm的板材。
使用JHM-1GY-700型Nd: YAG多功能激光加工机对GH4169合金激光焊接。选用纯度为99.99%的Ar作为焊接保护气体, 气体流量为22 L/min, 聚焦镜焦距为100 mm, 离焦量为-3.1 mm, 脉宽为9.0 ms, 电流为89 A, 频率为9 Hz, 焊接速度为370 mm/min等工艺参数。
Fig.2
Macromorphologies of the welded joints of GH4169 alloy under different laser welding parameters (a) pulse width of 9.6 ms; (b) pulse width of 9.0 ms; (c) pulse width of 8.7 ms; (d) pulse current of 89 A; (e) pulse current of 93 A
固定脉冲宽度9.0 ms、脉冲频率9 Hz、离焦量-3.1 mm, 当脉冲电流强度为89A时焊点重合较好, 溶池样貌完整(图2d)。当脉冲电流强度由89 A升至93 A时焊缝表面出现气孔(图2e), 由此确定最佳电流强度为89 A。综上, 激光焊接1.4 mm厚 GH4169板材的优化参数为: 离焦量-3.1 mm, 脉宽9.0 ms, 电流强度89 A, 频率9 Hz, 焊接速度370 mm/min。
Fig.3
Microstructures of double side laser welded joint of GH4169 alloy (a) overview of the welded joint; (b) base material; (c) heat-affected zone; (d) columnar zone; (e) equiaxed zone; (f) remelting zone

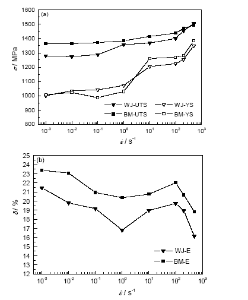

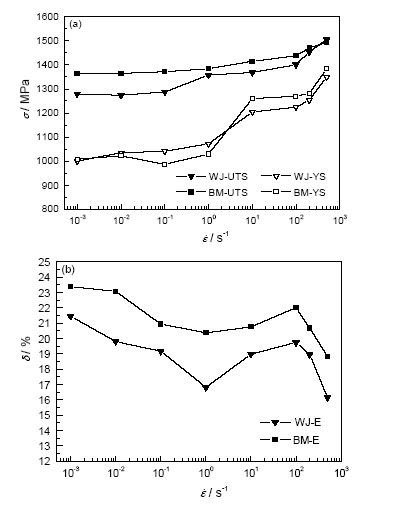

Fig.5
Tensile properties of the base metal and laser welded joint of GH4169 alloy under various strain rates (welded joint: WJ; base material: BM) (a) yield strength; ultimate tensile strength; (b) elongation
MADexin, Development of single crystal solidification technology for production of superalloy turbine blades,Acta Metallurgica Sinica, 51(10), 1179(2015)
ZHUOu, LIYulong, ZHANGYan, CAOWei, LEILiming, Heat treatment process for single-crystal superalloys used in aeroengines,Foundry Technology, 34(9), 1137(2013)
DUSuigeng, WANGXifeng, GAOMan, Characteristics of the friction welding interface between single crystal superalloy DD3 and fine grained superalloy GH4169,Acta Metallurgica Sinica, 51(8), 951(2015)
Guo-QingChen, Bing-GangZhang, Tian-MinLÜ, Ji-CaiFeng, Causes and control of welding cracks in electron-beam-welded superalloy GH4169 joints,Transactions of Nonferrous Metals Society of China, 23, 1971(2013)
Welding joint of GH4169 alloy with a good formation was obtained. No macroscopic defects occurred in the joint. The weld had mainly a dendritic structure; the base metal was a solid solution of Ni, Cr, and Fe, and the strengthening-phase particles such as Ni3Nb were dispersively distributed along the grain boundary. The average tensile strength of the joint reached 743.7 MPa, and the Vickers hardness of the weld exceeded HV 300. Because of the segregation of the low-melting compound Ni3Nb at the grain boundary of the fusion zone, liquid cracks tended to occur as a result of welding stress. The formation of liquid cracks was inhibited by adding an alloying element, Mn, to the welding bath, because Mn diffused to the fusion zone and the high-melting phase Mn2Nb formed, and thus the overall properties of the joint were improved.
