汤忖江
, 关海龙
TANG Cunjiang, GUAN Hailong
中图分类号: TG142.1
文章编号: 1005-3093(2016)06-0409-09
通讯作者:
收稿日期: 2015-12-2
网络出版日期: 2016-06-25
版权声明: 2016 《材料研究学报》编辑部 《材料研究学报》编辑部
基金资助:
展开
摘要
采用TMCP工艺获得了5种不同贝氏体体积分数的铁素体/贝氏体(F/B)多相钢。通过纵向力学性能分析, 并结合修正C-J分析方法研究了以F/B多相组织为特征的大变形管线钢的应变硬化行为, 获得了F/B多相钢中贝氏体体积分数与应力比、屈强比的关系, 并通过修正C-J分析对此现象的机理进行了合理的阐释。结果表明, 大变形管线钢的弹性形变阶段主要对应修正C-J分析中的第I阶段, 塑性形变阶段包括修正C-J分析第II和第III阶段, 屈服点(应变0.5%)附近阶段可跨越第I和第II阶段。F/B多相钢中各阶段的应变硬化能力存在显著差异, 并且其应变硬化行为呈现出与贝氏体体积分数相关的特性。通过适宜的组织调控可以实现管线钢强度和塑性的最佳匹配。应力比Rt1.5/Rt0.5适宜用于表征管材屈服点附近的应变硬化能力, 应力比Rt2/Rt1、Rt5/Rt1均适宜用于表征X70级管线钢塑性阶段应变硬化能力, Rt2/Rt1较适宜用于表征X80级管线钢塑性阶段应变硬化能力。
关键词：
Abstract
Five ferrite/bainite (F/B) multi-phase steels with different volume fractions of bainite were obtained by TMCP process. The strain hardening behavior of high deformability pipeline steel with F/B multi-phase was studied by the analysis of longitudinal mechanical properties and modified C-J analysis. The relationships between volume fraction of bainite and stress ratio as well as yield ratio were analyzed, and relevant mechanisms were illustrated by modified C-J analysis. The results show that the stage of elastic deformation of high deformability pipeline steel mainly corresponds to stage I in modified C-J analysis, and the stage of plastic deformation consists of stage II and stage III; and the stage near yield point (0.5% strain) can go across stage I and stage II. However, the strain hardening capability of each stage is obviously different from each other, and the strain hardening behavior is closely related to the volume fraction of bainite in F/B multi-phase steel. The optimal matching between strength and plasticity of pipeline steel can be achieved by controlling the microstructure suitably. The stress ratio of Rt1.5/Rt0.5 is appropriate to describe the strain hardening capability near the yield point, and the stress ratios of Rt2/Rt1 and Rt5/Rt1 are appropriate to represent the strain hardening capability of plastic deformation stage in X70 grade pipeline steel. The stress ratio of Rt2/Rt1 is suitable to characterize the strain hardening capability of plastic deformation stage in X80 grade pipeline steel.
Keywords：
管道输送是石油天然气最经济、高效、安全和环保的运输方式[1]。随着石油和天然气需求上升, 油气铺设管线已经延伸到极地、海洋和地质不稳定等环境恶劣的地区[2]。然而, 管道通过冻土层、海底、地震地带以及塌陷和滑坡等地区时常常要承受一定的塑性变形, 从而发生扭曲、屈折、断裂等破坏, 引发失效事故, 这就要求管道钢管应具有足够高的抗变形能力[3, 4]。因此, 开发能承受大的变形而不发生失效的大变形管线钢(high deformability pipeline steel)成为高性能管线钢的一个重要发展方向。
管材的变形能力或形变容量通常采用应力比、屈强比、均匀伸长率和应变硬化指数(strain/work hardening exponent)等描述。在工程中通常用应力比控制管材的应变硬化能力, 常用的表达形式有Rt1.5/Rt0.5, Rt2/Rt1和Rt5/Rt1等, 其中Rt1-Rt5分别表示应变1%-5%时的应力。屈强比, 即Rt0.5/Rm, 可以用于表征管材开始塑性变形到最后断裂前的形变容量[5]。管材塑性形变阶段对进一步形变的抵抗能力可以用应变硬化指数表征[6], 提高管材的应变硬化指数是提高其变形能力的有效途径[7]。对于大变形管线钢而言, 在高强韧性基础上, 较低的屈强比、较高的应力比、均匀伸长率和应变硬化指数是体现其优异形变性能的重要指标[8]。
大变形管线钢组织通常为双相或多相[5, 9], 其中, 铁素体/贝氏体(Ferrite/Bainite, F/B)复相、贝氏体/MA(martensite-austenite)等组织已成为大变形管线钢的主要组织调控手段[7, 10]。大变形管线钢的形变能力与其应变硬化行为相关, 但究其根本则取决于多相组织的微观力学行为, 而组织类型的多样化使得多相钢的形变机理变得异常复杂。目前对大变形管线钢组织的形变机制[11-13]、应变硬化行为及其硬化能力已有研究[7, 13, 14], 但对大变形管线钢的应变硬化行为、硬化能力与多相组织之间的关系研究较少。此外, 在表征管材应变硬化能力的各参数的研究中, 例如应变硬化指数[12, 14, 15]和屈强比[4, 16, 17]等有研究, 然而对应力比的相关研究却鲜见报道[18]。
本文通过热机械处理工艺(thermo mechanical controlled processing, TMCP)获得不同贝氏体体积分数的F/B多相钢, 对以F/B多相组织为特征的大变形管线钢应变硬化行为进行研究, 着重分析和阐释贝氏体分数与应力比、屈强比和形变机制之间的关系。
为获得不同贝氏体体积分数的F/B多相钢, 采用如表1所示化学成分的实验钢。通过热膨胀法测得Ar3为678℃, Ar1为575℃。采用如图1所示的TMCP工艺获得5种不同贝氏体体积分数的实验钢。实验钢在实验室轧机上进行轧制, No.1-No.5号实验钢坯厚度为42 mm。钢坯加热至1200℃保温60 min, 按照二阶段轧制工艺, 分别在再结晶区(2道次)和非再结晶区(3道次)轧制成厚度6 mm的钢板。再结晶区、非再结晶区总压下率分别为62-64%、60-63%。No.5号实验钢轧后空冷至Ar3以上温度水淬; No.4、No.3、No.2号实验钢轧后空冷至Ar3-Ar1之间不同温度水淬, 开冷温度依次由高到低; No.1号实验钢轧后空冷至室温。沿轧板纵向(轧向)切取金相和拉伸试样, 分别用于观察实验钢微观组织和测量其力学性能及应力-应变曲线, 拉伸应变速率低于5×10-3 s-1。金相试样表面经机械研磨、抛光, 用4%硝酸酒精溶液侵蚀约5-8 s, 采用BX51M型光学显微镜观察轧板纵向截面组织形貌。采用定量金相法测定实验钢中贝氏体体积分数。
表1 实验钢化学成分(质量分数,%)
Table 1 Chemical composition of experimental steels (mass fraction,%)
| C | Si | Mn | Ti | Nb | Ni+Cr+Cu |
|---|---|---|---|---|---|
| 0.04 | 0.22 | 1.75 | 0.015 | 0.095 | 0.5 |
目前, 对双相钢或多相钢应变硬化行为分析常见的分析方法有Hollomon分析(Hollomon analysis)、C-J分析(differential Crussard-Jaoul analysis)、修正C-J分析(modified Crussard-Jaoul analysis)和瞬时应变硬化指数n'(n'=d(lnσ)/d(lnε))等[19, 20]。其中, 修正C-J分析对组织的弹塑性变化敏感[21], 适用于对F/B多相钢组织的形变与应变硬化能力的分析。修正C-J分析基于式(1), 变换后得式(2), 对lnσ-ln(dσ/dεp)曲线进行分析[22]。
式中, εp为塑性真应变, ε0为初始真应变, σ为真应力, c为材料常数,
图2为通过TMCP工艺获得实验钢的微观组织。可以看出, No.1号实验钢组织类型为单一针状铁素体组织, 其中弥散分布着粒状MA; No.2-No.4号实验钢为针状铁素体和板条贝氏体多相组织, 含有极少量先共析铁素体; No.5号实验钢为单一板条贝氏体组织。

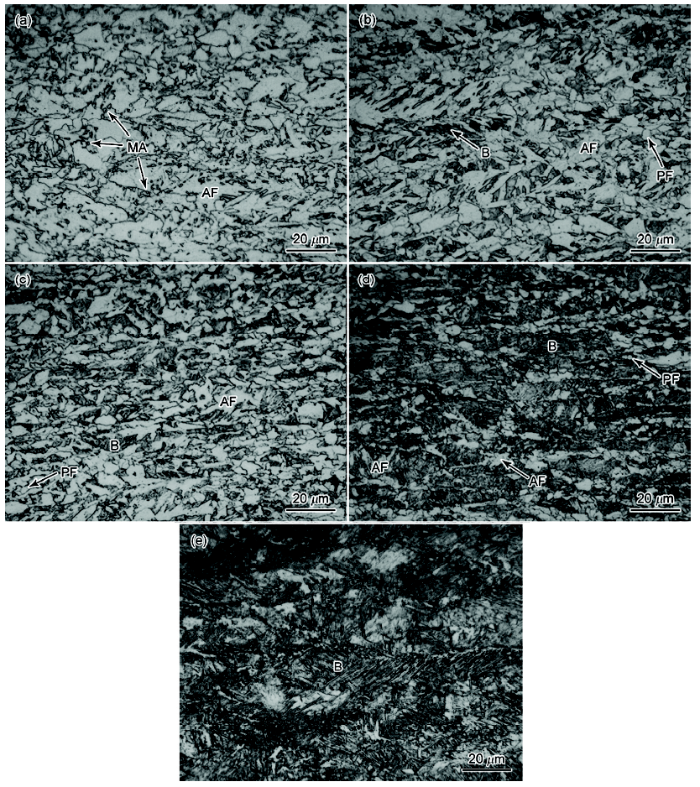

图2 TMCP工艺获得实验钢的微观组织
Fig.2 Microstructures of experimental steels obtained by TMCP process (a) No.1, (b) No.2, (c) No.3, (d) No.4, (e) No.5. Note: AF-acicular ferrite, PF-proeutectoid ferrite, B-bainite

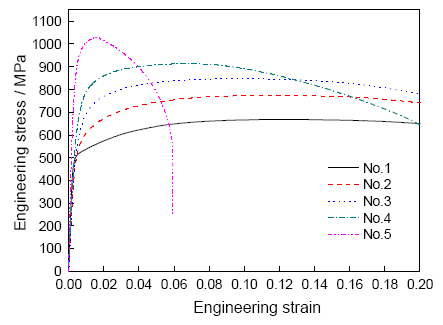

实验钢中贝氏体体积分数和纵向力学性能如表2所示。可以看出, 随着实验钢中贝氏体体积分数增加, 屈服强度和抗拉强度升高, 均匀伸长率和总伸长率降低。图3为实验钢纵向拉伸工程应力-应变曲线, 各曲线均呈圆屋顶型, 具有该特征应力-应变曲线的管线钢其形变能力优于具有屈服平台应力-应变曲线的管线钢[7]。
表2 实验钢中贝氏体体积分数和纵向力学性能
Table 2 Volume fraction of bainite and longitudinal mechanical properties of experimental steels
| Experimental steel | Volume fraction of Bainite/% | Engineering value | ||||
|---|---|---|---|---|---|---|
| Rt0.5/MPa | Rm/MPa | UEL/% | Agt/% | TEL/% | ||
| No.1 | 0 | 513 | 668 | 11.8 | 12.2 | - |
| No.2 | 27.9 | 520 | 774 | 10.8 | 11.5 | 31.7 |
| No.3 | 47.0 | 560 | 848 | 9.0 | 9.6 | 28.9 |
| No.4 | 65.9 | 638 | 914 | 6.1 | 6.7 | 25.7 |
| No.5 | 100 | 914 | 1031 | 1.4 | 1.6 | - |
图4为实验钢中贝氏体体积分数对应力比和屈强比的影响, 图5为实验钢中贝氏体体积分数对应力的影响。由图4可见, 不同贝氏体体积分数的实验钢的应力比曲线存在明显差异: 随着贝氏体体积分数增大, 应力比Rt1.5/Rt0.5呈现先增大后减小的趋势。当贝氏体体积分数约为60%时达到最大值; 应力比Rt2/Rt1、Rt5/Rt1在贝氏体体积分数低于30%时变化不明显, 当贝氏体体积分数超过30%后, 这两个比值均呈现明显下降的趋势, 其中Rt5/Rt1下降幅度高于Rt2/Rt1; 屈强比随着贝氏体体积分数增大明显呈先降低后升高的趋势, 当贝氏体体积分数约为50%时出现最小值。随着实验钢中贝氏体体积分数提高, Rt1.5/Rt0.5和屈强比曲线分别出现最大值和最小值, 由于这两个比值中均含有Rt0.5项, 此现象极有可能与实验钢的屈服点(应变0.5%)附近形变行为有关。
图4 实验钢中贝氏体体积分数对应力比和屈强比的影响
Fig.4 Effect of volume fraction of bainite on stress ratio and yield ratio of experimental steels
图5 实验钢中贝氏体体积分数对工程应力的影响
Fig.5 Effect of volume fraction of bainite on engineering stress of experimental steels
图5为实验钢中贝氏体体积分数对工程应力的影响。可以看出, 随着实验钢中贝氏体体积分数增加, 应力Rt0.5、Rt1、Rt1.5、Rt2、Rt5和Rm均增大, 而Rt0.5增大幅度在贝氏体体积分数为30%-80%之间减缓。Rt5在贝氏体体积分数超过70%后呈现明显下降趋势, 一方面是由于管材的塑性恶化至一定程度, 如最大力伸长率(elongation at maximum force, Agt)低于5%, 较早出现颈缩现象导致管材流变应力降低, 因此, 应力比Rt5/Rt1可能低于Rt2/Rt1。
图6为实验钢的修正C-J分析曲线, 各阶段分段如图中虚线所示。由图6可以看出, 修正C-J分析曲线中, 第I阶段转变至第II阶段, 第II阶段转变至第III阶段通常呈现平缓过渡, 为渐变的过程。No.1、No.2和No.3号实验钢均呈现三阶段硬化行为, 但No.3号实验钢的三阶段硬化特点不明显, 呈现出由三阶段向二阶段过渡的特点, No.4和No.5号实验钢呈现出二阶段硬化行为。由此可知, F/B多相钢的应变硬化行为呈现与贝氏体体积分数相关的特性, 即随着贝氏体体积分数增加, 其应变硬化行为呈现由三阶段硬化行为向二阶段硬化行为转变。在修正C-J分析中, 双相钢/多相钢硬化行为通常不会超过三阶段[19, 24]。对各阶段的机理阐述存在一些差异, 但总的来说均是从组织形变和位错演化角度进行阐述。从组织形变演化角度而言, 第I阶段主要与软相(铁素体)形变相关, 第II阶段主要与软相和硬相(贝氏体或马氏体)的一致性形变(协调或者非协调形变)相关[19, 25], 第III阶段应与动态回复相关[15, 24, 26]。从位错演化方式而言, 由于软相强度低从而易形变(实验中观测到软相先形变[27]), 第I阶段主要是位错在软相中的滑移、排列和缠结[13, 15, 26]; 随着载荷提高, 软相与硬相发生一致性形变[19, 25], 硬相中位错和滑移系开动[11], 此为第II阶段; 在第III阶段中, 由于已形成的位错结构难以显著提高材料流变应力, 导致材料的应变硬化能力将下降[24]。
通过对实验钢修正C-J分析曲线中的各阶段进行线性拟合可得其斜率1-
表3 实验钢的修正C-J分析中各阶段应变硬化能力和转折应变(εt)
Table 3 The strain hardening capability of each stages and transition strain (εt) of experimental steel in modified C-J analysis
| Experimental Steel | Stage I | Stage II | Stage III | Engineering strain/% | |||||
|---|---|---|---|---|---|---|---|---|---|
| 1- | 1/ | 1- | 1/ | 1- | 1/ | Transition strain | Elongation at maximum force (Agt) | ||
| εt1 (stage I-II) | εt2 (stage II-III) | ||||||||
| No.1 | -14.8 | 0.06 | -4.6 | 0.18 | -13.4 | 0.07 | 0.6 | 3.3 | 12.2 |
| No.2 | -6.5 | 0.13 | -6.9 | 0.13 | -9.3 | 0.10 | 0.8 | 4.6 | 11.5 |
| No.3 | -4.9 | 0.17 | -9.6 | 0.09 | -11.3 | 0.08 | 0.8 | 3.1 | 9.6 |
| No.4 | -4.0 | 0.20 | -12.5 | 0.07 | 0.7 | 6.7 | |||
| No.5 | -3.3 | 0.23 | -24.3 | 0.04 | 0.4 | 1.6 | |||
从表3可以看出, εt1值变化范围0.4%-0.8%; εt2值变化范围3.1%-4.6%。由此可知, 大变形管线钢的弹性形变阶段主要对应修正C-J分析第I阶段, 塑性形变阶段包括修正C-J分析第II和第III阶段, 屈服点(应变0.5%)附近阶段可跨越第I和第II阶段。通常情况下, 转折应变随着F/B多相钢中硬相体积分数增加有降低趋势[28], 即第I阶段转变至第II阶段, 第II阶段转变至第III阶段均会提前。从表3可以看出, No.2-No.5号实验钢的εt1、εt2均呈现降低趋势, 而No.1与No.2-No.5号实验钢的εt1、εt2变化趋势不一致。由此表明, 实验钢中贝氏体体积分数超过30%后, 转折应变εt1、εt2均随贝氏体体积分数增大而减小, εt1减小说明贝氏体较早产生弹塑性形变。然而No.1号实验钢的εt1、εt2变化规律呈现异常现象, 应主要是由于单一组织铁素体钢在形变、位错和亚结构演化机制等方面与F/B多相钢存在一定差异所致[26, 29, 30]。

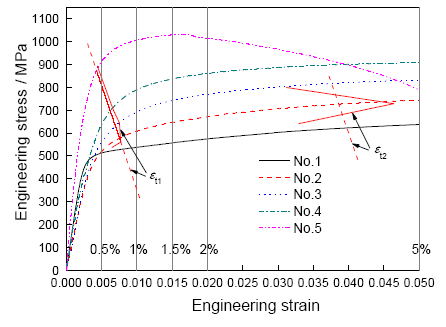

图7显示了转折应变εt1、εt2在实验钢应力-应变曲线上的位置(图中实线和虚线分别为转折应变的实测值和拟合直线), 0.5%、1%、1.5%、2%、5%应变分别用竖直线表示。应力比Rt1.5/Rt0.5和屈强比两个比值在实验钢中贝氏体体积分数约为0-90%时跨越了修正C-J分析的第I和第II阶段, 只有No.5号实验钢基本位于第II阶段。由于第I和第II阶段应变硬化能力随实验钢中贝氏体体积分数增大呈现相反的变化趋势, 变化幅度也较大, 因此导致随贝氏体体积分数增大, 应力比Rt1.5/Rt0.5和屈强比分别出现最大值和最小值。与应力比Rt1.5/Rt0.5不同的是: 实验钢中贝氏体体积分数为0-50%时, 屈强比还跨越了修正C-J分析的第III阶段。但第III阶段的应变硬化能力随着实验钢中贝氏体体积分数增加变化不明显, 因此, 第III阶段应变硬化行为不会对屈强比和应力比规律产生显著影响。应力比Rt2/Rt1完全位于第II阶段。当修正C-J分析呈现二阶段硬化特点时, 应力比Rt5/Rt1位于第II阶段; 当修正C-J分析呈现三阶段硬化特点时, Rt5/Rt1大部分位于第II阶段, 小部分位于第III阶段, 如图7所示。随着实验钢中贝氏体体积分数提高第II阶段应变硬化能力降低, 但第III阶段不会对应力比规律产生显著影响, 因此, 导致Rt2/Rt1和Rt5/Rt1随着实验钢中贝氏体体积分数增加而减小。由此可知, 通过C-J分析能够合理地阐释了贝氏体体积分数变化对应力比和屈强比的影响。
图7 修正C-J分析中转折应变(εt1、εt2)在实验钢工程应力-应变曲线的位置
Fig.7 Transition strain (εt1, εt2) of modified C-J analysis in engineering stress-strain curves of experimental steels
从图7中可以看出, 应力比Rt1.5/Rt0.5适宜用于表征管材屈服点附近的应变硬化能力, Rt2/Rt1和Rt5/Rt1可用于表征管材塑性阶段的应变硬化能力。Rt1.5/Rt0.5与Rt2/Rt1、Rt5/Rt1所表述的应变硬化含义有较大差异: 管材屈服点附近和塑性形变阶段应变硬化行为机制存在较大差异, 并且硬化能力差异明显, 因此, Rt1.5/Rt0.5与Rt2/Rt1、Rt5/Rt1不宜混淆使用。同时, 若管材最大力伸长率(Agt)分别低于1.5%、2%、5%, 则Rt1.5/Rt1、Rt2/Rt1、Rt5/Rt1值将包含过颈缩点后出现损伤的一部分应变硬化能力, 这是一个值得注意的方面。
图8为应力比Rt1.5/Rt0.5、Rt2/Rt1、Rt5/Rt1与屈服强度的关系, 竖直虚线区间为管线钢强度级别所规定的屈服强度范围(API SPEC 5L (2012))[31]。直线、虚线分别为Rt1.5/Rt0.5、Rt2/Rt1、Rt5/Rt1在X70、X80强度级别范围内拟合直线, 曲线为拟合曲线。可以看出, 随着实验钢屈服强度提高, Rt1.5/Rt0.5呈现先增大后减小的趋势, Rt1.5/Rt0.5最大值出现在X80强度级别范围内; 在X70-X80强度级别范围内, Rt5/Rt1值高于Rt2/Rt1, Rt5/Rt1随着管材屈服强度提高有降低趋势, 而Rt2/Rt1变化不大。通常, 实验钢屈服强度随着贝氏体体积分数增大而升高, 因此, Rt1.5/Rt0.5和Rt5/Rt1有如图4所示类似的变化规律, 但在X70-X80强度级别范围内Rt2/Rt1下降趋势不明显。
图8 在X70-X80强度级别范围内实验钢的屈服强度(Rt0.5)与应力比的关系
Fig.8 The relationship between yield stress (Rt0.5) and stress ratio of the experimental steels in the region of X70-X80 grade
表4为应力比Rt1.5/Rt0.5、Rt2/Rt1和Rt5/Rt1在X70、X80强度级别范围内通过线性拟合所得的斜率绝对值以及基于应力比样本估计的标准偏差, 简称应力比标准差。在各强度区间上应力比拟合直线斜率可以表示其值的稳定性, 应力比标准差可以观察其值的离散程度[32]。从表4中可以看出, 在X70-X80强度级别范围内, Rt1.5/Rt0.5的斜率和标准差较大, 分别为0.0006-0.0025、0.053-0.107; Rt2/Rt1和Rt5/Rt1的斜率和标准差较小, Rt2/Rt1的斜率和标准差分别为0.0002-0.0003、0.011-0.014; Rt5/Rt1的斜率和标准差分别为0.0003-0.0006、0.016-0.026。通过对比Rt2/Rt1和Rt5/Rt1的斜率及标准差可以发现, Rt2/Rt1斜率和标准差均比Rt5/Rt1小, 表明Rt2/Rt1值较稳定。由于实验钢屈服点附近阶段可跨越修正C-J分析中的第I和第II阶段。通常情况下, 随着管材中组织体积分数变化, 第I和第II阶段应变硬化能力变化较大, 导致管材屈服点附近的应变硬化能力波动较大。Rt1.5/Rt0.5表征了管材屈服点附近的应变硬化行为, 因此导致Rt1.5/Rt0.5波动较大。Rt2/Rt1和Rt5/Rt1表征管材塑性阶段的应变硬化行为。修正C-J分析呈现三阶段硬化特点时, Rt5/Rt1大部分位于第II阶段, 小部分位于第III阶段, 第III阶段是动态回复阶段, 这是导致应力比Rt5/Rt1降低幅度稍大于应力比Rt2/Rt1的原因之一。另一方面, Rt5/Rt1大于Rt2/Rt1是由于管材持续应变硬化所致。
表4 X70-X80强度级别范围内实验钢的应力比线性拟合斜率绝对值和标准差
Table 4 The absolute value of the linear fitted slope of stress ratio and standard deviation of experimental steels in the region of X70-X80 grade
| The grade of experimental steels (interval of yield stress/MPa) | Slope of linear fitting (absolute value) | Standard deviation of stress ratio (sample estimation) | ||||
|---|---|---|---|---|---|---|
| Rt1.5/Rt0.5 | Rt2/Rt1 | Rt5/Rt1 | Rt1.5/Rt0.5 | Rt2/Rt1 | Rt5/Rt1 | |
| X70 (485-635) | 0.0025 | 0.0002 | 0.0003 | 0.107 | 0.014 | 0.016 |
| X80 (555-705) | 0.0006 | 0.0003 | 0.0006 | 0.053 | 0.011 | 0.026 |
对于X70级实验钢而言, Rt2/Rt1和Rt5/Rt1的斜率分别为0.0002、0.0003, 其标准差分别为0.014、0.016。由于Rt2/Rt1和Rt5/Rt1值变化均不大, 并且比较稳定, 较适宜用于表征X70级管线钢塑性阶段应变硬化能力。对于X80级实验钢而言, Rt2/Rt1和Rt5/Rt1的斜率分别为0.0003、0.0006, 标准差分别为0.011、0.026, Rt5/Rt1值变化稍大于Rt2/Rt1, Rt2/Rt1值变化不大, 并且比较稳定, Rt2/Rt1较适宜用于表征X80级管线钢塑性阶段应变硬化能力, 如表4所示。
标准中对X70-X80级大变形管线的应力比作出规定: 应力比Rt1.5/Rt0.5、Rt2/Rt1、Rt5/Rt1分别不应低于1.07-1.10、1.01-1.04、1.08[33-35]。目前已有研究结果表明[36], 为了使钢管的屈曲应变满足至少为1.5%的水平, 管体材料纵向拉伸试验的Rt2/Rt1和Rt5/Rt1分别需要超过1.04 和1.08。图9为X70-X80强度级别范围内实验钢的应力比与标准规定应力比的关系。图9中的水平直线为Rt1.5/Rt0.5、Rt2/Rt1和Rt5/Rt1值, 分别为1.10、1.04和1.08。可以看出, X70-X80级实验钢容易满足Rt1.5/Rt0.5、Rt2/Rt1和Rt5/Rt1的需求, 此强度级别大变形管线钢可以采用F/B多相组织设计。并且, 通过适宜的组织调控可以实现管线钢强度和塑性的最佳匹配。
图9 X70-X80强度级别范围内实验钢的应力比与标准规定应力比的关系
Fig.9 The relationship between the stress ratio of the experimental steels in the region of X70-X80 grade and the specified values of stress ratio in the standard
1. 大变形管线钢的弹性形变阶段主要对应修正C-J分析中的第I阶段, 塑性形变阶段包括修正C-J分析第II和第III阶段, 屈服点(应变0.5%)附近阶段可跨越第I和第II阶段。F/B多相钢的各阶段的应变硬化能力存在差异, 随着F/B多相钢中贝氏体体积分数增加, 第I阶段应变硬化能力升高, 第II阶段应变硬化能力降低, 第III阶段应变硬化能力变化不大。其应变硬化行为呈现出与贝氏体体积分数相关的特性, 通过适宜的组织调控可以实现管材强度和塑性的最佳匹配。
2. 应力比Rt1.5/Rt0.5和屈强比(Rt0.5/Rm)在形变过程中跨越了修正C-J分析第I、II阶段, 应力比Rt2/Rt1全部位于第II阶段, 应力比Rt5/Rt1中大部分或全部位于第II阶段。第I和第II阶段应变硬化能力随F/B多相钢中贝氏体体积分数增加呈现相反的变化趋势, 导致Rt1.5/Rt0.5在贝氏体体积分数约60%时出现最大值, 屈强比在贝氏体体积分数约50%时出现最小值, Rt2/Rt1和Rt5/Rt1随着贝氏体体积分数增大而减小。屈强比、Rt5/Rt1可能有一部分位于第III阶段, 但第III阶段应变硬化能力随F/B多相钢中贝氏体体积分数变化不明显, 此阶段应变硬化行为不会对屈强比和应力比的规律产生显著影响。
3. 应力比Rt1.5/Rt0.5适宜用于表征管材屈服点附近的应变硬化能力, 应力比Rt2/Rt1和Rt5/Rt1可用于表征管材塑性阶段的应变硬化能力。其中, Rt2/Rt1和Rt5/Rt1较适宜用作X70级管线钢塑性阶段应变硬化能力表征参数; Rt2/Rt1较适宜用作X80级管线钢塑性阶段应变硬化能力表征参数。X70-X80级大变形管线钢可以采用F/B多相组织设计。
