有机-无机杂化改性磷酸盐/石墨润滑涂层的高温摩擦学性能

张若云, 王伟, 宫鹏辉, 丁士杰, 刘显昊, 孙壮, 吕凡凡, 高原, 王快社

High-temperature Tribological Performance of Organic-inorganic Hybrid Modified Phosphate/Graphite Lubricating Coatings

ZHANG Ruoyun, WANG Wei, GONG Penghui, DING Shijie, LIU Xianhao, SUN Zhuang, LV Fanfan, GAO Yuan, WANG Kuaishe

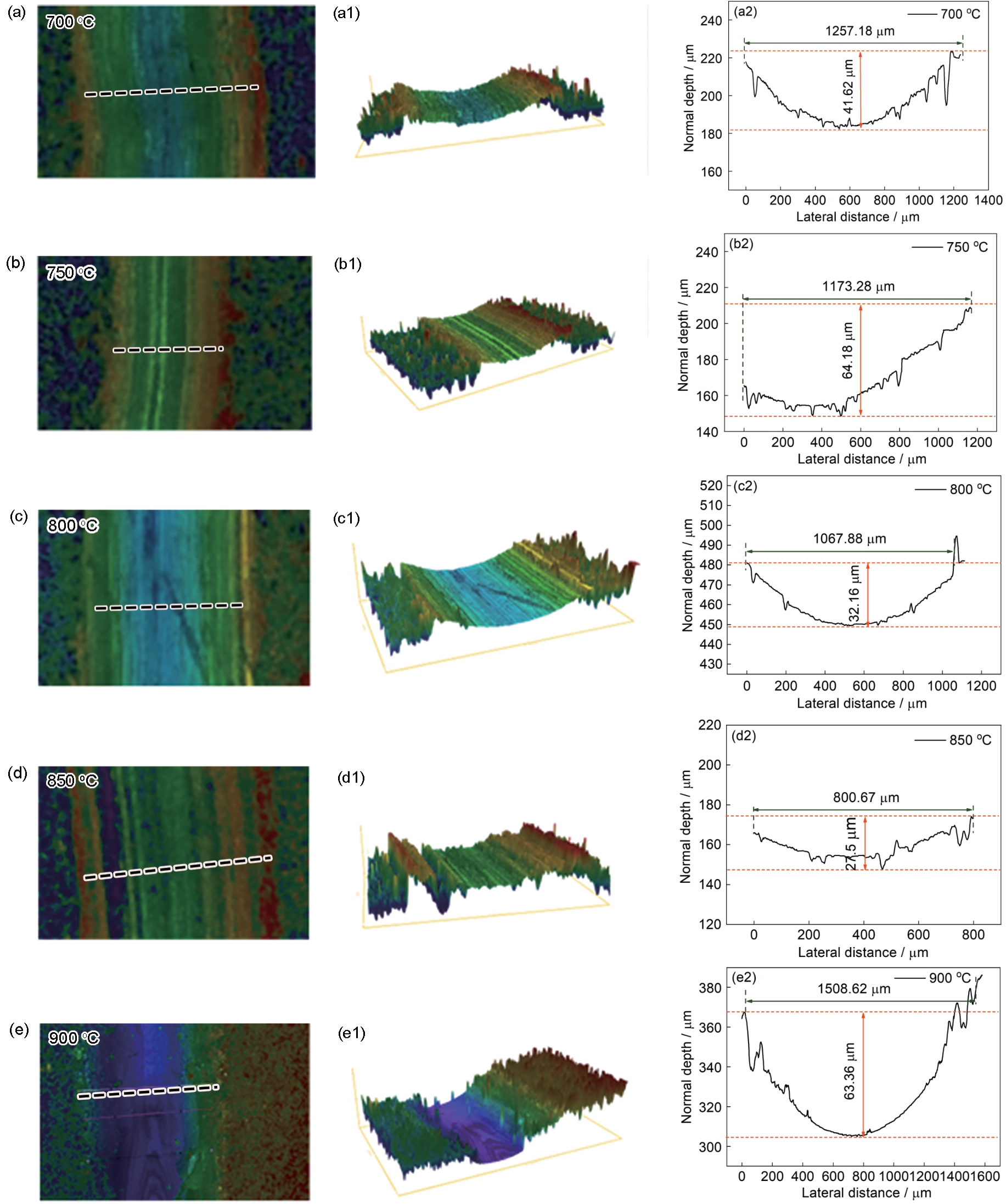

图9 在不同温度下10%杂化AP粘结涂层TA1盘磨痕表面的磨损轨道、三维轮廓图以及二维高度轮廓曲线

Fig.9 Wear trace surfaces of 10% hybrid AP bond-coated TA1 discs at different temperatures were analysed using wear traces (a-e), 3D contour plots (a1-e1) and 2D height profile curves (a2-e2)
