新型二次硬化钢25CrMo3NiTiVNbZr的高温力学性能和强化机理
High-temperature Mechanical Properties and Strengthening Mechanism of New Secondary Hardened Steel 25CrMo3NiTiVNbZr
新型二次硬化钢25CrMo3NiTiVNbZr的高温力学性能和强化机理 |
| 李若浩, 胡霄雨, 王中成, 李浩, 杨勇, 徐乐, 梁恩溥, 何肖飞 |
|
High-temperature Mechanical Properties and Strengthening Mechanism of New Secondary Hardened Steel 25CrMo3NiTiVNbZr |
| LI Ruohao, HU Xiaoyu, WANG Zhongcheng, LI Hao, YANG Yong, XU Le, LIANG Enpu, HE Xiaofei |

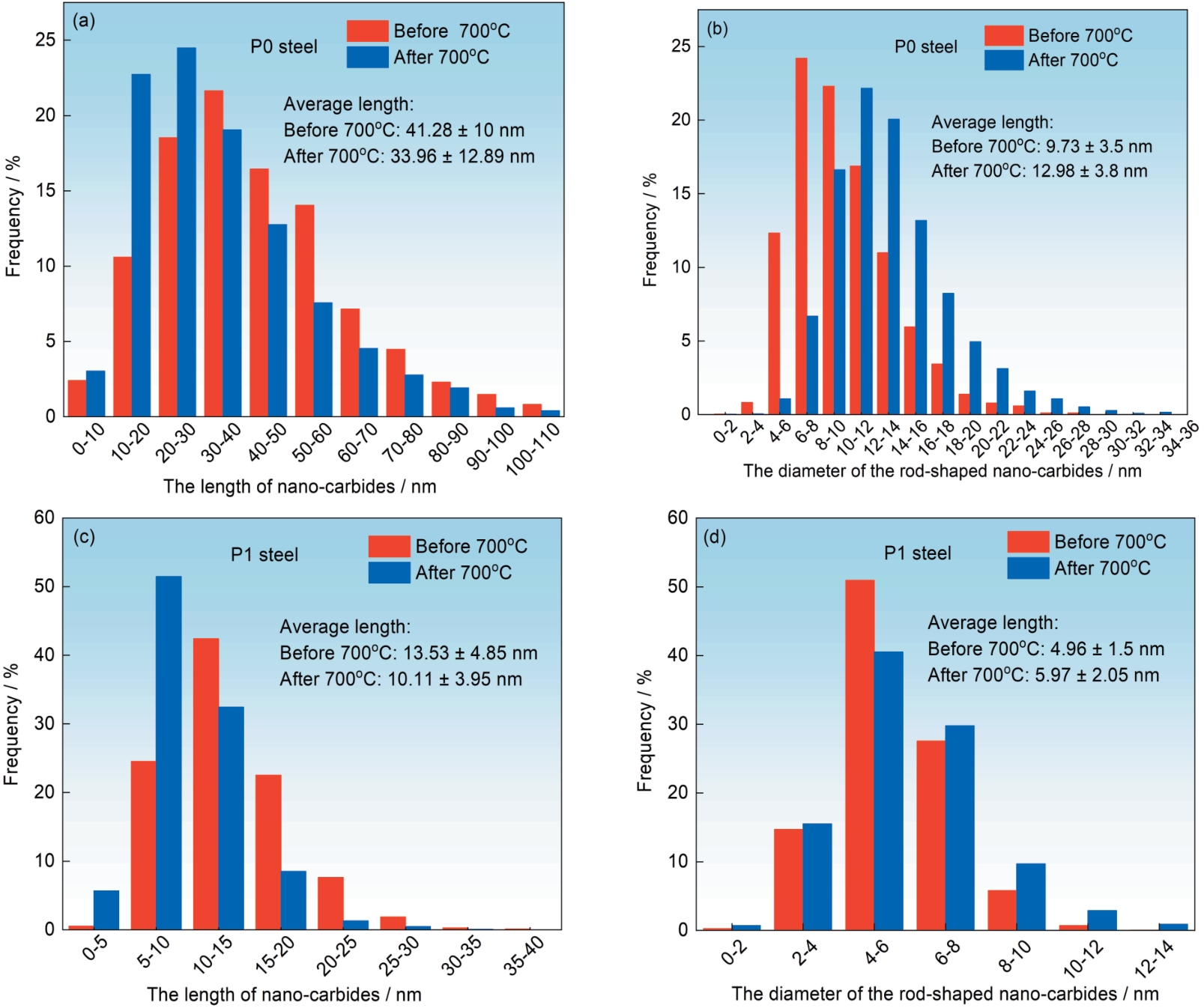

| 图9 P0钢和P1钢700℃拉伸前后析出相尺寸的变化 |
| Fig.9 Carbides size before and after deformation at 700oC of P0 steel (a, b) and P1 steel (c, d) |
|
|
