两种“W替Re”型低成本第二代镍基单晶高温合金的高温持久变形机制
Stress Rupture Deformation Mechanism of Two "Replacement of Re by W" Type Low-cost Second-generation Nickel Based Single Crystal Superalloys at Elevated Temperatures
两种“W替Re”型低成本第二代镍基单晶高温合金的高温持久变形机制 |
| 周章瑞, 吕培森, 赵国旗, 张剑, 赵云松, 刘丽荣 |
|
Stress Rupture Deformation Mechanism of Two "Replacement of Re by W" Type Low-cost Second-generation Nickel Based Single Crystal Superalloys at Elevated Temperatures |
| ZHOU Zhangrui, LV Peisen, ZHAO Guoqi, ZHANG Jian, ZHAO Yunsong, LIU Lirong |

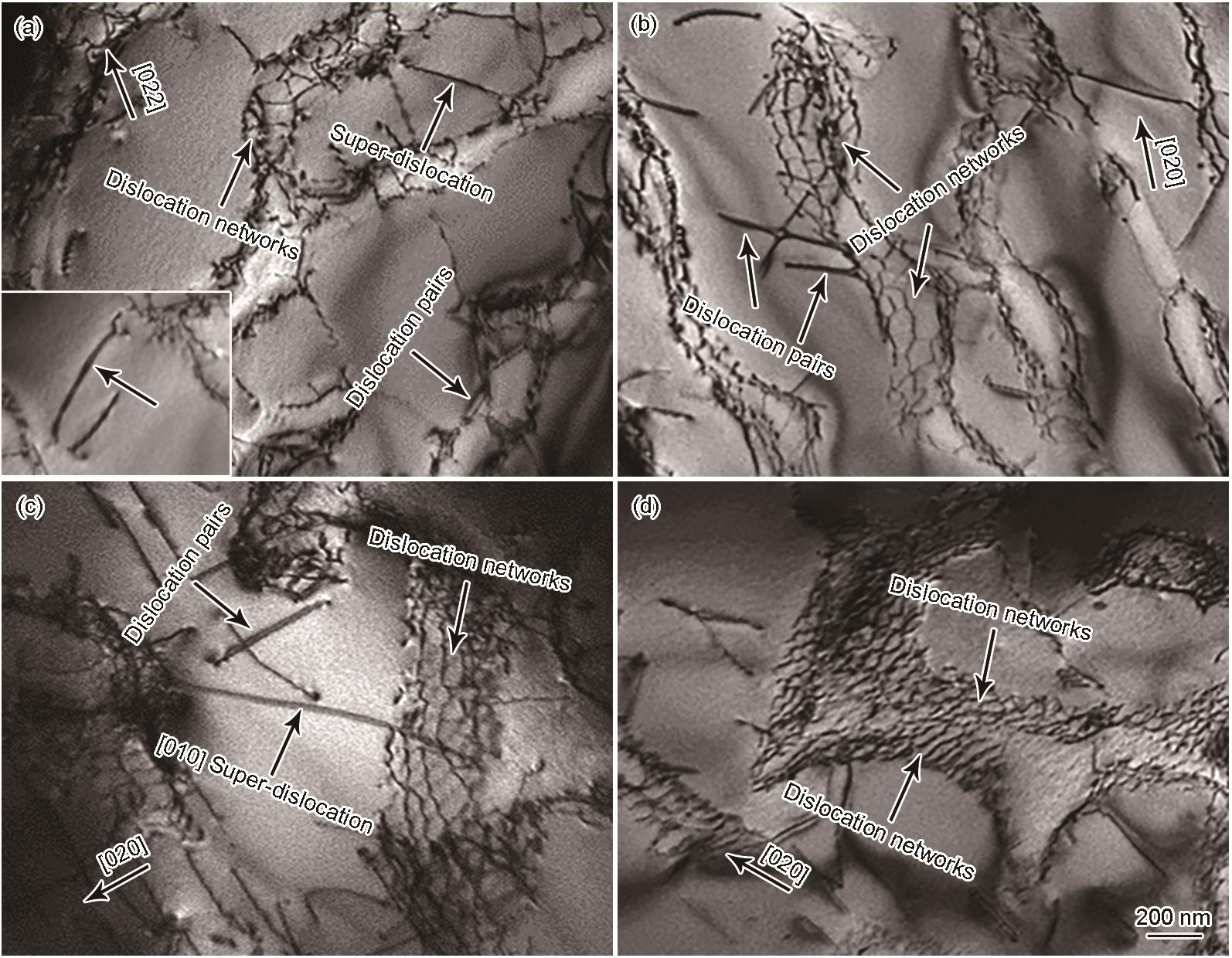

| 图6 在982℃/248 MPa和1070℃/137 MPa条件下持久断裂后合金中的位错组态 |
| Fig.6 Dislocation configuration of alloys after fracture at 982℃/248 MPa and 1070℃/137 MPa (a) (b) 982℃/248 MPa (c)(d) 1070℃/137 MPa (a) (c) 8.5W+1.0Re alloy (b) (d) 8.0W+1.5Re alloy |
|
|
