rGO/PANI/MnO2 三元复合材料的制备和电化学性能
Preparation and Electrochemical Performance of rGO/PANI/MnO2 Ternary Composites
rGO/PANI/MnO2 三元复合材料的制备和电化学性能 |
| 刘艳云, 刘宇涛, 李万喜 |
|
Preparation and Electrochemical Performance of rGO/PANI/MnO2 Ternary Composites |
| LIU Yanyun, LIU Yutao, LI Wanxi |

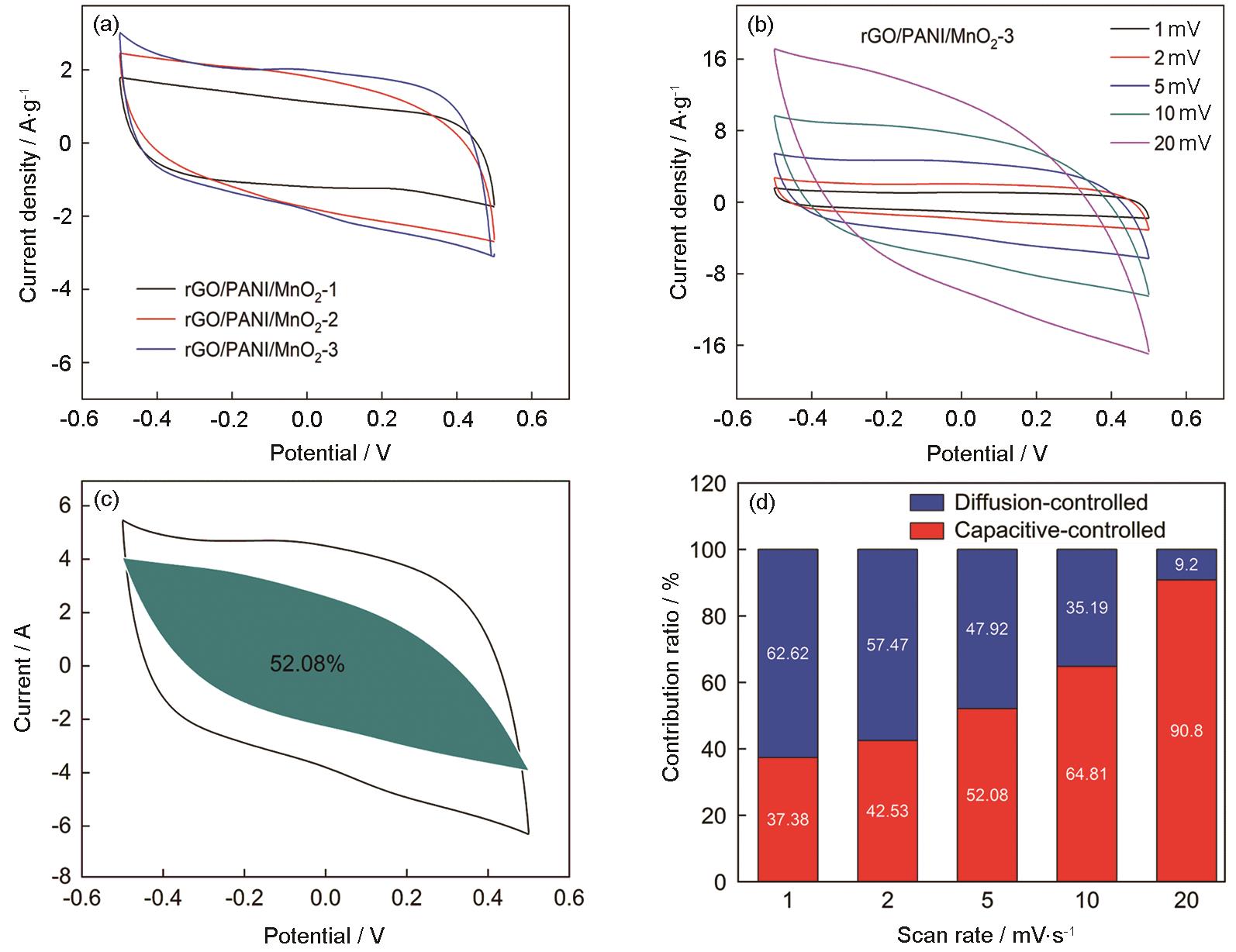

| 图5 三种复合材料在扫速为2 mV/s下的CV曲线,rGO/PANI/MnO2-3复合材料在不同扫描速率下的CV曲线和扫速为5 mV/s下的电容控制贡献以及 rGO/PANI/MnO2-3复合材料在不同扫速下的电容控制与扩散控制贡献率 |
| Fig.5 CV curves of the three composites at 2 mV/s (a), CV curves of rGO/PANI/MnO2-3 at different scan rates (b), the capacitive contribution at a scan rate of 5 mV/s (c), the ratio of capacitive effects and diffusion controlled contributions at different scan rates (d) |
|
|
