CuO纳米阵列结构光阴极的制备及其光电化学分解水的性能

孟祥东, 甄超, 刘岗, 成会明

Controlled Synthesis of CuO Nanoarrays as Efficient Photocathodes for Photoelectrochemical (PEC) for Water Splitting

MENG Xiangdong, ZHEN Chao, LIU Gang, CHENG Huiming

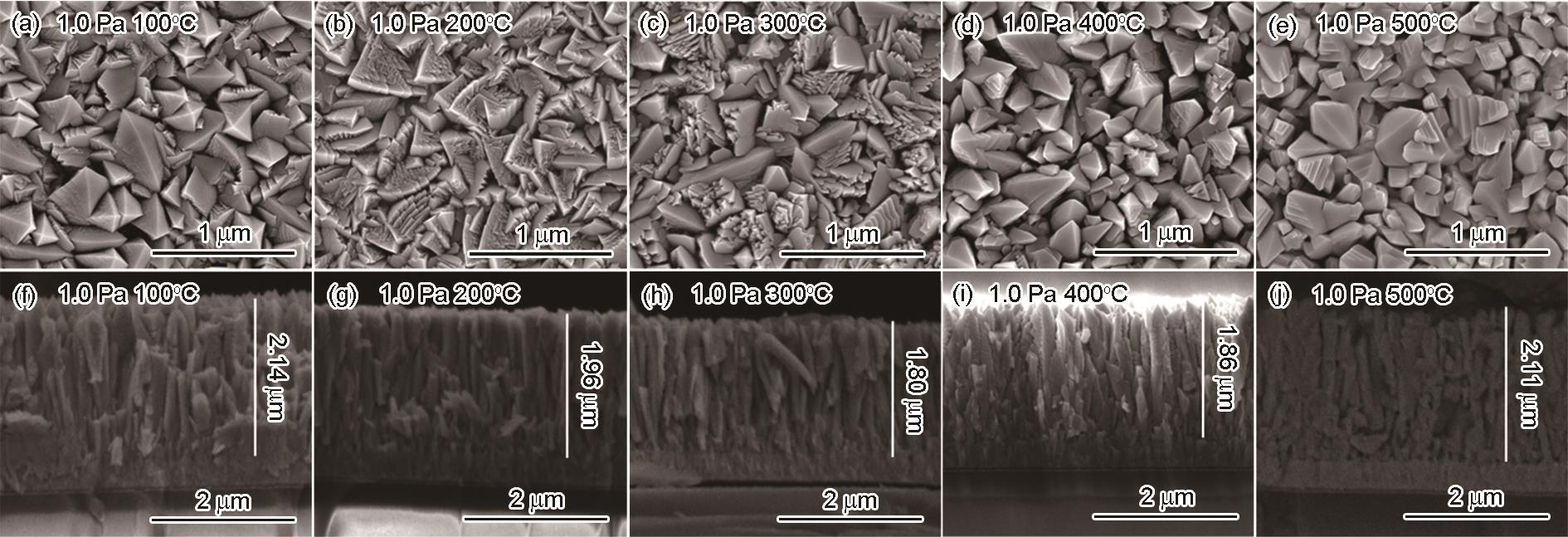

图4 压力为1.0 Pa,基底温度分别为100℃,200℃,300℃,400℃,500℃的CuO NAs光阴极及其截面的SEM照片

Fig.4 SEM images of samples fabricated under the condions of pressure of 1.0 Pa and substrate set temperatures of 100℃, 200℃, 300℃, 400℃, 500℃, respectively (a~e), and corresponding cross-section pictures (f~j) and the thickness of different samples was provided
