奥氏体化温度对900 MPa级HSLA钢显微组织和晶体学演变的影响

高野, 任家宽, 李志峰, 崔聪, 陈俊, 刘振宇

Effect of Austenitizing Temperature on Microstructure and Crystallographic Evolution of 900 MPa Grade HSLA Steel

GAO Ye, REN Jiakuan, LI Zhifeng, CUI Cong, CHEN Jun, LIU Zhenyu

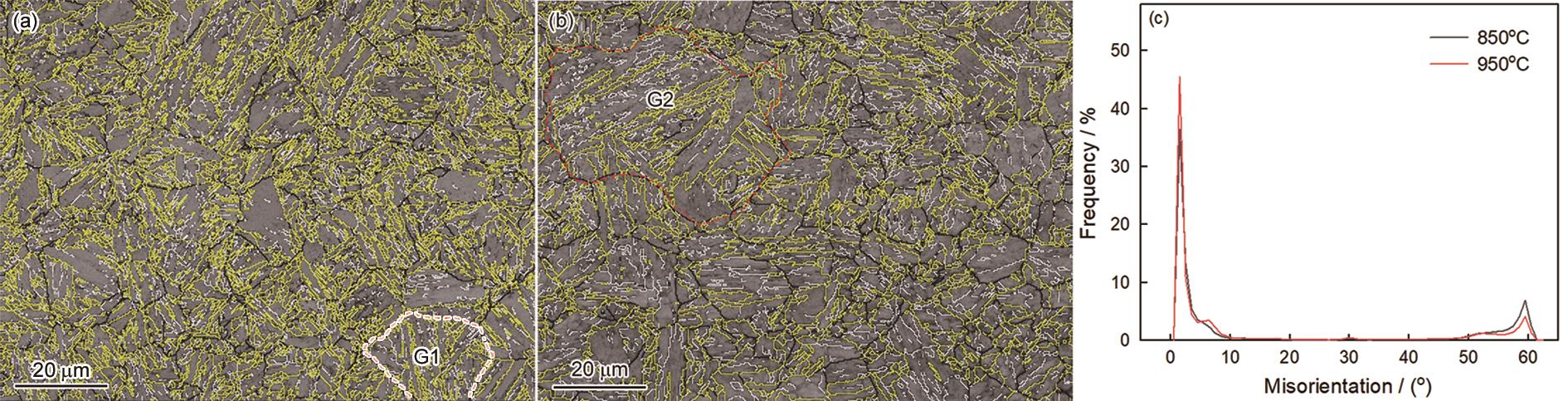

图6 实验钢的IPF、晶界分布与频率图

Fig.6 IPF, boundary distribution of test steel (white line: 5~15°; black line: 15~45°; yellow line: ＞45°) (a) 850A; (b) 950A; (c) frequency of boundary
