C和W对低合金Cr-Mo钢焊缝金属组织和冲击韧性的影响

朱高文, 吴栋, 陆善平

Effect of C- and W-content on Microstructure and Toughness of Weld Metal for Low Alloy Cr-Mo Steel

ZHU Gaowen, WU Dong, LU Shanping

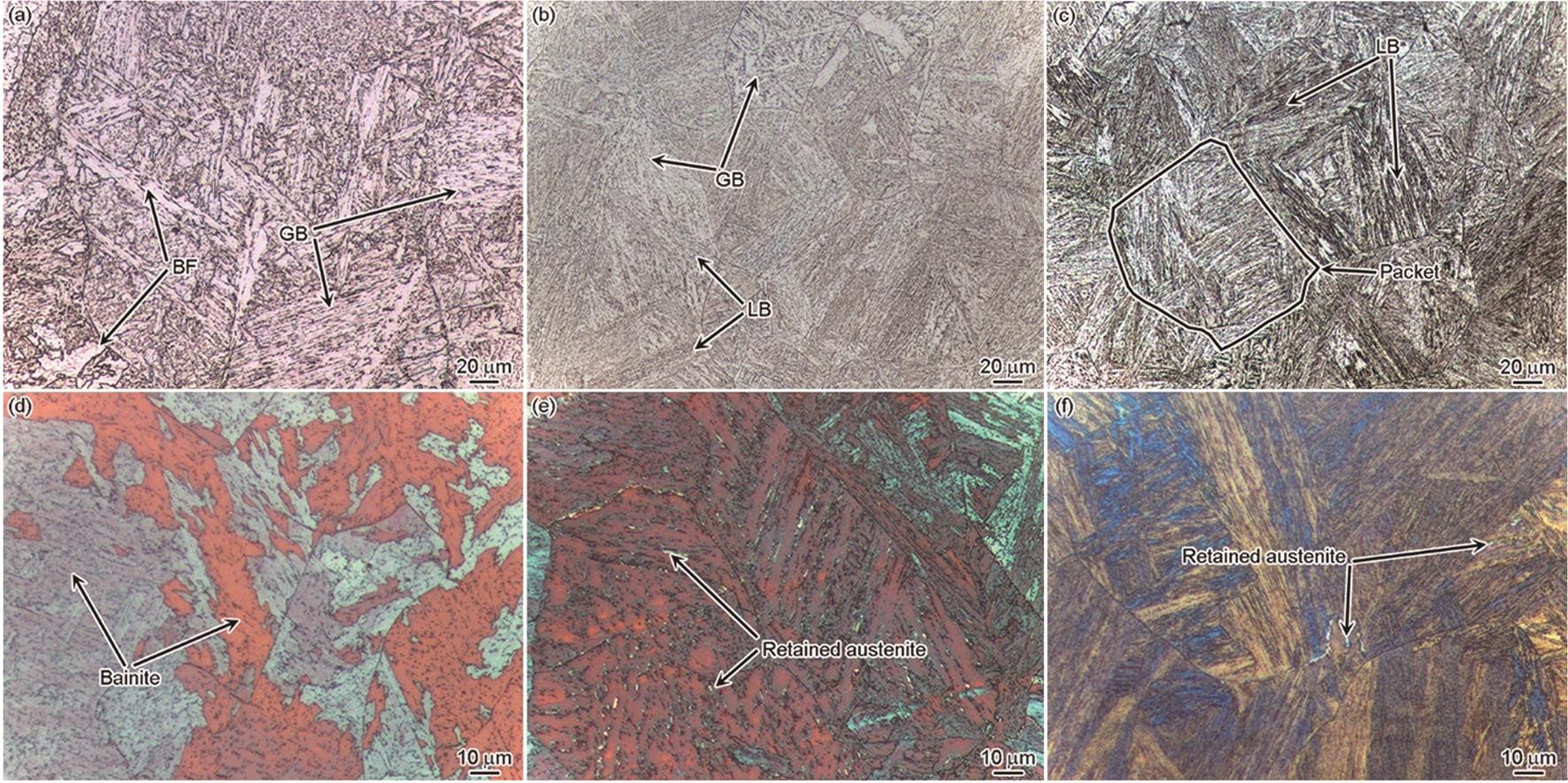

图9 不同C含量焊缝金属显微组织OM图

Fig.9 OM images of weld metal microstructure in different C contents (a, d) 02C, (b, e) 05C, (c, f) 08C; (a~c) OM images, (d~f) color images (GB represents granular bainite, LB represents lath bainite, BF represents bainite ferrite)
